  11. Multi-Conductor, 22 AWG, Natural, 0.153 in.

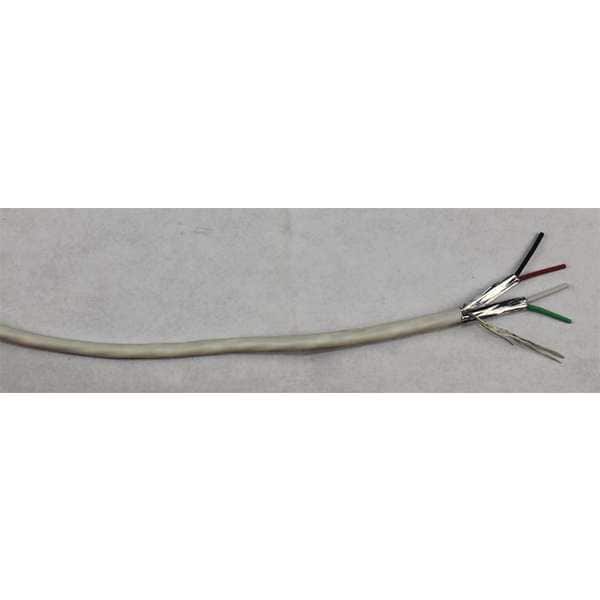

Belden Multi-Conductor, 22 AWG, Natural, 0.153 in. 82723 8771000 - main

Multi-Conductor, 22 AWG, Natural, 0.153 in.

  • Mfr # 82723 8771000

  • Zoro # G3724290

product price: $3,294.99
/ea
Free Shipping & Returns

Key Features

Cable Length
1,000 ft
Number of Strands
30
Conductor Gauge
22 AWG
Fire Rating
Commercial
Jacket Color
Natural
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
82723 8771000
Zoro #
G3724290
UPC #
612825197607
Country of Origin
United States

Dimensions

Cable Length
1,000 ft
Outside Diameter
0.2 in
Length
1000 ft.
Spool Length
1,000 ft
Nominal Outside Dia.
0.153 in
Conductor Size
22 AWG
Conductor Size - Data Cable
22 AWG
Bend Radius
1 1/2 in

Details

Item
Communication Cable
Number of Strands
30
Conductor Gauge
22 AWG
Fire Rating
Commercial
Jacket Color
Natural
Jacket Material
PVC
Number of Conductors
4
Solid/Stranded
Stranded
Shielding Material
Foil
Maximum Voltage Rating
300 V
NEC Article and Type
800 CMP
Standards
APAC Compliance-China RoHS Compliant II (GB/T 26572-2011), CMP, CPR Euroclass: Eca, EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), NEC Article 800 CMP, NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2, UKCA Mark
Total Number of Conductors - Data Cable
4 (2 Pair)
Solid / Stranded
Stranded
Shielded / Unshielded
Shielded
Jacket Material - Wire and Cable
PVC
Package Type - Data Cable
Reel in a Box
Plenum / Riser Rated
Plenum Rated
Insulation Material
FEP
Suggested Voltage Rating - Data Cable
300 V
Application
Alarm Systems, Audio Systems, Instrumentation Systems
Shielded
Shielded
Cable Sub-Category
Multi-Conductor
Application - Communication Cable
Audio Systems, Control Systems, Instrumentation Systems
Item - Data Cable
Communication Cable
Temp. Range
-4 Degrees to 194 Degrees F
Fire Rating - Data Cable
Plenum
NEC Article
800
Impedance
36 Ohm Nominal Impedance
Package Type
Reel in a Box
Maximum Current
2.3 A
Number of Pairs
2
Maximum Capacitance
43.0 pf/ft (Nominal Capacitance Conductor to Conductor); 75.0 pf/ft (Nominal Capacitance Conducotr to Other (Conductor + Shield))
Product Type
Communication Cable
Resistance Properties
Flame/Fire Resistant
Maximum Operating Temperature
194 Degrees F
Maximum Impedance
36 ohm
Minimum Operating Temperature
-4 Degrees F
Conductor Type
Stranded Conductor
Jacketing Material
Lspvc-Low Smoke Polyvinyl Chloride
Material
Tinned Copper
Shield Type
Foil Shielded - Alum/Mylar
Conductor Count
2 Pairs
NEC Rating
UL LISTED ART 800 PLENUM
Voltage Rating
300 Volts AC
CSA
FT6 HORIZONTAL FLAME & SMOKE TEST
Spec Nbr Ul Style
UL LSTED WIRE MISC.
Screen/Shield
Yes
Temperature Rating
80 Degrees Centigrade
Construction
Indivl/Foil Side & Drain Out

Description

Communication Cable, Cable Length 1,000 ft, Fire Rating Commercial, Number of Strands 30, Conductor Gauge 22 AWG, Insulation Material FEP, Jacket Color Natural, Jacket Material PVC, Shielded Shielded, Shielding Material Foil, Solid/Stranded Stranded, Number of Conductors 4, Outside Diameter 0.2 in, Package Type Reel in a Box, Application Alarm Systems, Audio Systems, Instrumentation Systems, Maximum Voltage Rating 300 V, NEC Article and Type 800 CMP, Number of Pairs 2
