  11. Multi-Conductor, 24 AWG, Natural, 0.273 in.

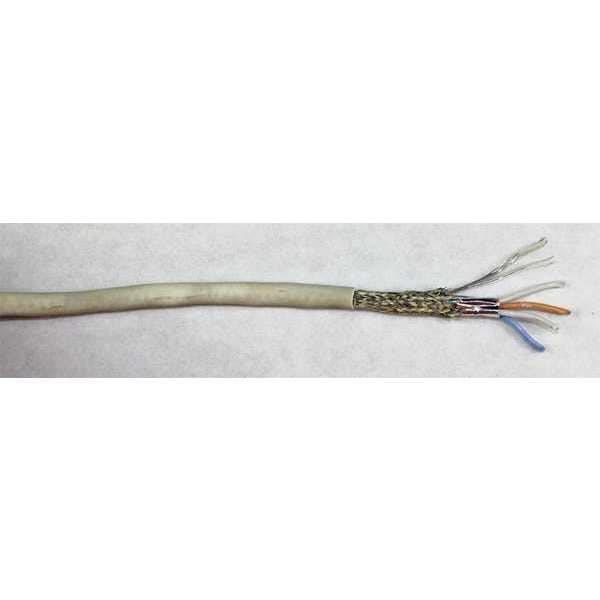

Belden Multi-Conductor, 24 AWG, Natural, 0.273 in. 82842 8771000 - main

Multi-Conductor, 24 AWG, Natural, 0.273 in.

  • Mfr # 82842 8771000

  • Zoro # G3724275

product price: $7,415.99
/ea
Free Shipping & Returns

Key Features

Cable Length
1,000 ft
Number of Strands
32
Conductor Gauge
24 AWG
Fire Rating
Commercial
Jacket Color
Natural
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
82842 8771000
Zoro #
G3724275
UPC #
612825198192
Country of Origin
United States

Dimensions

Cable Length
1,000 ft
Outside Diameter
0.3 in
Length
1000 ft.
Conductor Size
24 AWG
Nominal Outside Dia.
0.273 in
Conductor Size - Data Cable
24 AWG
Spool Length
1,000 ft
Bend Radius
2 3/4 in

Details

Item
Communication Cable
Number of Strands
32
Conductor Gauge
24 AWG
Fire Rating
Commercial
Jacket Color
Natural
Jacket Material
PVC
Number of Conductors
4
Solid/Stranded
Stranded
Shielding Material
Tinned Copper Braid
Maximum Voltage Rating
300 V
NEC Article and Type
800 CMP
Standards
APAC Compliance-China RoHS Compliant II (GB/T 26572-2011), CMP, CPR Euroclass: Eca, EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), NEC Article 800 CMP, NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2, UKCA Mark
Insulation Material
Foam FEP
Jacket Material - Wire and Cable
PVC
Fire Rating - Data Cable
Plenum
Application - Communication Cable
Computer Systems
Cable Sub-Category
Multi-Conductor
Total Number of Conductors - Data Cable
4 (2 Pair)
Plenum / Riser Rated
Plenum Rated
Temp. Range
-4 Degrees to 167 Degrees F
Application
Computer Systems, Audio Systems, Instrumentation Systems, Communications
Solid / Stranded
Stranded
Shielded / Unshielded
Shielded
Suggested Voltage Rating - Data Cable
300 V
Item - Data Cable
Communication Cable
Package Type - Data Cable
Reel in a Box
Shielded
Shielded
Package Type
Reel in a Box
Impedance
120 Ohm Nominal Impedance
Maximum Impedance
120 ohm
Resistance Properties
Flame/Fire Resistant
Maximum Operating Temperature
167 Degrees F
Product Type
Communication Cable
Number of Pairs
2
Maximum Capacitance
12.0 pf/ft (Nominal Capacitance Conductor to Conductor); 22.0 pf/ft (Nominal Capacitance Conducotr to Other (Conductor + Shield))
Maximum Current
3.2 A
Minimum Operating Temperature
32 Degrees F
Stranding
7x32
Screen/Shield
Yes
Spec Nbr Ul Style
UL LSTED WIRE MISC.
Voltage Rating
300 Volts AC
Copper
TC
Awg
24
Shield
Beldfoil + 90% TC Braid
Material
Tinned Copper
Nom. Capacitance (Pf/Ft.)
12
Construction
Overall Shield & Drain
Shield Type
Braid Over Foil Shield
UL Designation
CMP
Conductor Type
Stranded Conductor
Jacketing Material
Lspvc-Low Smoke Polyvinyl Chloride
Jacket
Flamarrest
NEC Rating
UL LISTED ART 800 PLENUM
CSA
FT6 HORIZONTAL FLAME & SMOKE TEST
Temperature Rating
75 Degrees Centigrade

Description

Communication Cable, Cable Length 1,000 ft, Fire Rating Commercial, Number of Strands 32, Conductor Gauge 24 AWG, Insulation Material Foam FEP, Jacket Color Natural, Jacket Material PVC, Shielded Shielded, Shielding Material Tinned Copper Braid, Solid/Stranded Stranded, Number of Conductors 4, Outside Diameter 0.3 in, Package Type Reel in a Box, Application Computer Systems, Audio Systems, Instrumentation Systems, Communications, Maximum Voltage Rating 300 V, NEC Article and Type 800 CMP
