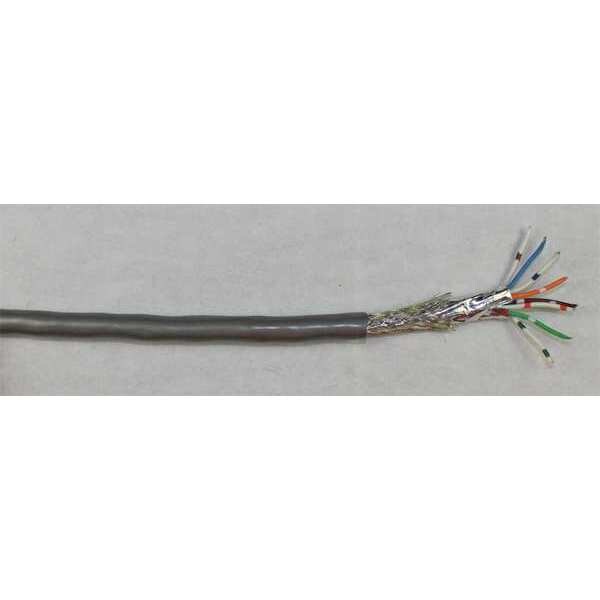

Belden Multi-Conductor, 24 AWG, Silver, 0.302 in. 8104 0601000 - main

Multi-Conductor, 24 AWG, Silver, 0.302 in.

  • Mfr # 8104 0601000

  • Zoro # G3724598

product price:  $4,959.99
/ea
Free Shipping & Returns

Key Features

Cable Length
1,000 ft
Number of Strands
32
Conductor Gauge
24 AWG
Fire Rating
Commercial
Jacket Color
Chrome
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8104 0601000
Zoro #
G3724598
UPC #
612825194859
Country of Origin
Germany

Dimensions

Cable Length
1,000 ft
Outside Diameter
0.3 in
Conductor Size - Data Cable
24 AWG
Spool Length
1,000 ft
Nominal Outside Dia.
0.302 in
Length
1000 ft.
Conductor Size
24 AWG
Bend Radius
2 3/4 in

Details

Item
Communication Cable
Number of Strands
32
Conductor Gauge
24 AWG
Fire Rating
Commercial
Jacket Color
Chrome
Jacket Material
PVC
Number of Conductors
8
Solid/Stranded
Stranded
Shielding Material
Tinned Copper Braid
Maximum Voltage Rating
300 V
NEC Article and Type
800 CM
Standards
APAC Compliance-China RoHS Compliant II (GB/T 26572-2011), AWM 2919, CEC / C(UL) Compliance-CM, CPR Euroclass: Eca, CPR UKCA Class: Eca, EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), NEC Article 800 CM, UKCA Mark, UL 1685 FT4 Loading, IEC 60332-1-2
Temp. Range
-22 Degrees to 176 Degrees F
Shielded / Unshielded
Shielded
Cable Sub-Category
Multi-Conductor
Total Number of Conductors - Data Cable
8 (4 Pair)
Insulation Material
Foam
Fire Rating - Data Cable
Commercial
Jacket Material - Wire and Cable
PVC
Application
Computer Systems, Audio Systems, Instrumentation Systems
Package Type - Data Cable
Reel in a Box
Solid / Stranded
Stranded
Shielded
Shielded
Item - Data Cable
Communication Cable
Plenum / Riser Rated
Riser Rated
Suggested Voltage Rating - Data Cable
300 V
Application - Communication Cable
Computer Systems
Package Type
Reel in a Box
Impedance
100 Ohm Nominal Impedance
Maximum Capacitance
12.5 pf/ft (Nominal Capacitance Conductor to Conductor); 22.0 pf/ft (Nominal Capacitance Conducotr to Other (Conductor + Shield))
Number of Pairs
4
Maximum Impedance
100 ohm
Product Type
Communication Cable
Maximum Current
1.5 A
Minimum Operating Temperature
-22 Degrees F
Resistance Properties
Impact Resistant, Flame/Fire Resistant
Maximum Operating Temperature
176 Degrees F
Plenum
General Purpose
NEC Rating
UL LISTED ART 800
Color Code
Gray (Slate)
Material
Tinned Copper
Conductor Count
4 Pairs
Spec Nbr Ul Style
UL STYLE, 2919
Shield Type
Braid Over Foil Shield
Voltage Rating
30 Volts AC
Screen/Shield
Yes
Jacketing Material
Pvc-Polyvinyl Chloride
Construction
Special Construction
Conductor Type
Stranded Conductor
Temperature Rating
80 Degrees Centigrade

Description

Communication Cable, Cable Length 1,000 ft, Fire Rating Commercial, Number of Strands 32, Conductor Gauge 24 AWG, Insulation Material Foam, Jacket Color Chrome, Jacket Material PVC, Shielded Shielded, Shielding Material Tinned Copper Braid, Solid/Stranded Stranded, Number of Conductors 8, Outside Diameter 0.3 in, Package Type Reel in a Box, Application Computer Systems, Audio Systems, Instrumentation Systems, Maximum Voltage Rating 300 V, NEC Article and Type 800 CM, Number of Pairs 4
