Shop BELIMO

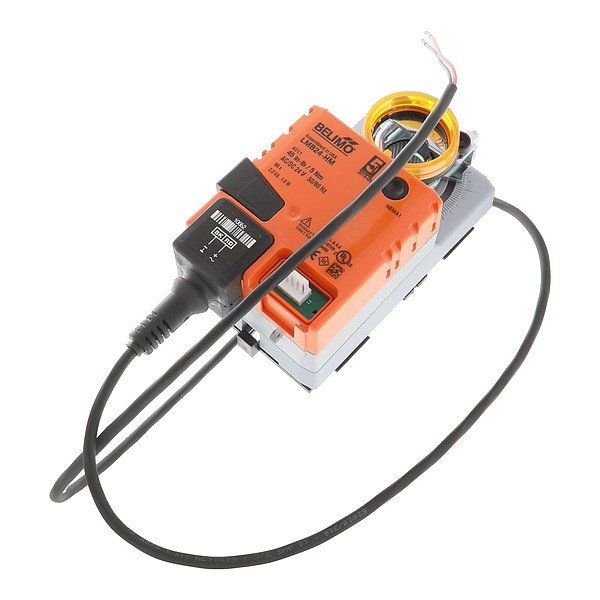

24V RETROFIT ACTUATOR

  • Mfr # LMB24-HM
  • Zoro # G715797322

product price:
$
188.99
/ea
Free Shipping & Returns

Key Features

Spring Return
Non-Spring Return
Signal Type
Proportional
Input Voltage
24V AC/DC
Power Consumption
1.5 W
Power Rating
2VA
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LMB24-HM
Zoro #
G715797322
UPC #
-
Country of Origin
United States
Spring Return
Non-Spring Return
Signal Type
Proportional
Input Voltage
24V AC/DC
Power Consumption
1.5 W
Item
Damper Actuator
Power Rating
2VA
Maximum Operating Temperature
122 Degrees F
Shaft Rotation
CW/CCW
Stroke Degree
0 to 95 Degrees
Housing Color
Orange
Number of Auxiliary Switches
2
Output Signal
2 Auxiliary Switch
Smoke Application Rating
Not Smoke Application Rated
Product Type
Damper Actuator
Contact Form
SPDT
Valve Application
Damper
Application
Dampers
Rated Torque
45 in-lb
Electrical Connection Type
Hardwired
Standards
CAN/CSA-E60730-1:02, cULus Listed to UL60730-1A:02, Quality Standard ISO 9001, UL 2043, UL 60730-2-14:02, UL Listed
Housing Material
Plastic
Minimum Operating Temperature
-22 Degrees F
Weight
0.9 lb
NEMA Rating
2
Fire Application Rating
Not Fire Application Rated
For Use With Building Automation Systems
Not Building Automation System Compatible
Plenum Rating
Plenum Rated
IP Rating
IP54

Dimensions

Overall Width
2 5/8 in
Overall Depth
1 7/8 in
Overall Height
6 1/2 in

Description

Damper Actuator, Valve Application Damper, Signal Type Proportional, Rated Torque 45 in-lb, Input Voltage 24V AC/DC, Output Signal 2 Auxiliary Switch, Contact Form SPDT, Electrical Connection Type Hardwired, For Use With Building Automation Systems Not Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Non-Spring Return, Smoke Application Rating Not Smoke Application Rated, Fire Application Rating Not Fire Application Rated, Shaft Rotation CW/CCW
