  9. Actuator, Damper, 370 in-lb, 24V AC/DC
Shop All Actuators and Damper Motors
Belimo

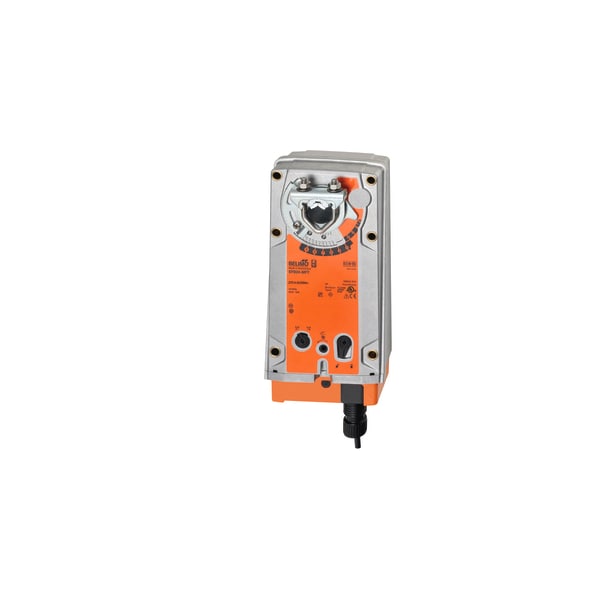

Actuator, Damper, 370 in-lb, 24V AC/DC

product price: $919.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Spring Return Spring Return
  • Signal Type Multi-Functional Technology (MFT)
  • Input Voltage 24V AC/DC
  • Power Consumption 16 VA
  • Power Rating 9.5W
See all product information

Product Information

Dimensions

Overall Height 13 1/8 in
Overall Width 5 3/8 in
For Shaft Diameter 1 in
Overall Depth 4 3/4 in

Details

Spring Return Spring Return
Signal Type Multi-Functional Technology (MFT)
Input Voltage 24V AC/DC
Power Consumption 16 VA
Power Rating 9.5W
Item Actuator
Standards CAN/CSA E60730-1:02, CE acc. to 2014/30/EU, cULus acc. to UL60730-1A/-2-14, ISO 9001, UL Listed 2043
Weight 12 lb
Application Dampers
Maximum Operating Temperature 122 Degrees F
NEMA Rating 2
For Use With Building Automation Systems Building Automation System Compatible
IP Rating IP54
Number of Auxiliary Switches 0
Shaft Rotation CW/CCW
Time to Close 150 sec
Plenum Rating Plenum Rated
Valve Application Damper
Rated Torque 370 in-lb
Minimum Operating Temperature -22 Degrees F
Electrical Connection Type Hardwired
Compatible Building Automation Protocols BACnet IP, Modbus, MP-Bus
Housing Material Aluminum, Plastic
For Shaft Shape Round
Product Type Damper Actuator
Stroke Degree 95 Degrees

Description

Actuator, Valve Application Damper, Signal Type Multi-Functional Technology (MFT), Rated Torque 370 in-lb, Input Voltage 24V AC/DC, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Time to Close 150 sec, Shaft Rotation CW/CCW, Stroke Degree 95 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 122 Degrees F, Minimum Operating Temperature -22 Degrees F
