Shop BELIMO

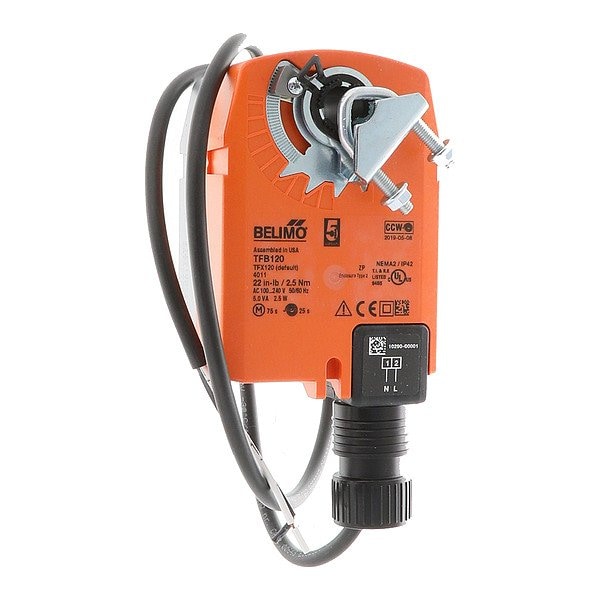

DamperActuator S/R 120v On/Off

  • Mfr # TFB120

  • Zoro # G915797320

product price:
$
277.99
/ea
Free Shipping & Returns

Key Features

Spring Return
Spring Return
Signal Type
On/Off
Input Voltage
100 to 240V AC
Power Consumption
2.5 W
Power Rating
5VA
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TFB120
Zoro #
G915797320
UPC #
-
Country of Origin
United States

Dimensions

Overall Width
3 in
Overall Depth
3 1/4 in
Overall Height
6 1/4 in
For Shaft Diameter
1/2 in

Details

Spring Return
Spring Return
Signal Type
On/Off
Input Voltage
100 to 240V AC
Power Consumption
2.5 W
Power Rating
5VA
Item
Damper Actuator
Shaft Type
1/4" to 1/2"
Smoke Application Rating
Not Smoke Application Rated
NEMA Rating
2
Output Signal
1 Auxiliary Switch
For Shaft Shape
Round
Standards
CAN/CSA-E60730-1:02, cULus Listed to UL60730-1A:02, Quality Standard ISO 9001, UL 2043, UL 60730-2-14:02, UL Listed
Shaft Rotation
CW/CCW
Rated Torque
22 in-lb
Number of Auxiliary Switches
1
For Use With Building Automation Systems
Not Building Automation System Compatible
Maximum Operating Temperature
122 Degrees F
Minimum Operating Temperature
-22 Degrees F
Electrical Connection Type
Hardwired
Stroke Degree
0 to 95 Degrees
Plenum Rating
Plenum Rated
Weight
1.8 lb
Valve Application
Damper
Product Type
Damper Actuator
Fire Application Rating
Not Fire Application Rated
Housing Material
Plastic
IP Rating
IP54
Housing Color
Orange
Application
Dampers
Time to Close
25 sec
Contact Form
SPDT

Description

Damper Actuator, Valve Application Damper, Signal Type On/Off, Rated Torque 22 in-lb, Input Voltage 100 to 240V AC, Output Signal 1 Auxiliary Switch, Contact Form SPDT, Electrical Connection Type Hardwired, For Use With Building Automation Systems Not Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Smoke Application Rating Not Smoke Application Rated, Fire Application Rating Not Fire Application Rated, Time to Close 25 sec
