Belimo

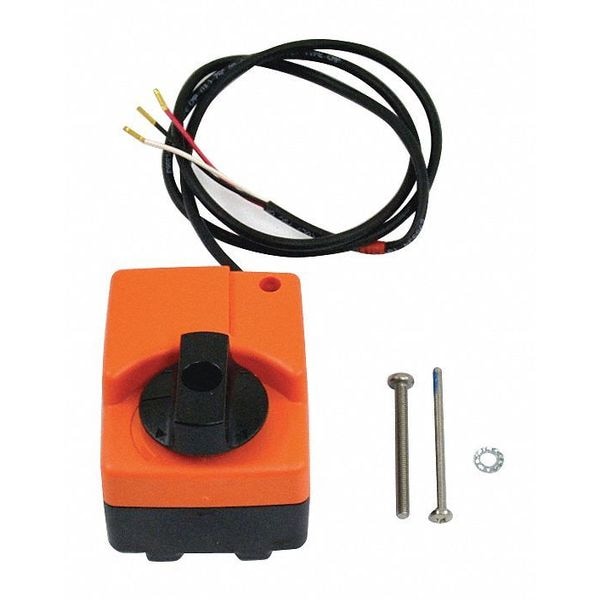

Rotary Actuator, 2 and 3 Way Ball Valve

original price: $107.99
3% off
new price: $103.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Power Rating 1W
  • Spring Return Non-Spring Return
  • Motor Direction CW or CCW
  • Width 2 1/2 in
  • Voltage 24V AC
See all product information

Product Information

Dimensions

Width 2 1/2 in
Height 3 1/4 in
Depth 2 13/16 in
Overall Height 3 1/4 in
Overall Depth 2 13/16 in
Overall Width 2 1/2 in
Stroke Length Not Rated
Electrical Lead Length 3 ft

Details

Power Rating 1W
Spring Return Non-Spring Return
Motor Direction CW or CCW
Item Electric Ball Valve Actuator
Voltage 24V AC
Stroke Deg. 0 to 90
Ambient Temp. Range -22 Degrees to 122 Degrees F
Timing 90 sec
Signal Type Floating Point, On/Off
Input Voltage 24V AC
Torque Not Rated
Product Type Electric Ball Valve Actuator
Weight 0.69 lb
For Use With Building Automation Systems Building Automation System Compatible
Number of Auxiliary Switches 0
Power Consumption 1 VA
Maximum Operating Temperature 122 Degrees F
Time to Close 90 sec
IP Rating IP40
Shaft Rotation CW/CCW
Minimum Operating Temperature -22 Degrees F
NEMA Rating 1
Electrical Connection Type Cable
Valve Application Valve
Stroke Degree 90 Degrees
Operating Temperature - Minimum -22 Degrees F
Cycle Time 90 sec
Control Signal Floating Point, On/Off
Return Action Non-Spring Return
Operating Temperature - Maximum 122 Degrees F
Compatible Series B200, B210, B220, B300, B310

Description

Electric Ball Valve Actuator, Auxiliary Contact Form Not Applicable, Compatible Series B200, B210, B220, B300, B310, Control Signal Floating Point, On/Off, Cycle Time 90 sec, Electrical Connection Type Cable, Electrical Lead Length 3 ft, NEMA Rating 1, Number of Auxiliary Switches 0, Operating Temperature - Maximum 122 Degrees F, Operating Temperature - Minimum -22 Degrees F, Overall Depth 2 13/16 in, Overall Height 3 1/4 in, Overall Width 2 1/2 in, Power Consumption 1 VA
