Belimo

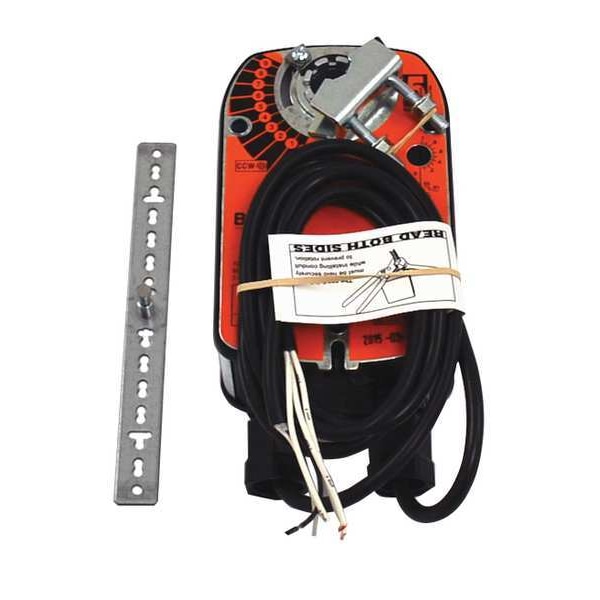

Spring Return Damper Actuator, 120VAC

product price: $299.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Width 3 55/64 in
  • Shaft Type 3/8 in to 1/2 in Round or 3/8 in to 7/16 in Square
  • Mounting Type Direct Mount
  • Signal Type On/Off
  • Voltage 120V AC
See all product information

Product Information

Dimensions

Width 3 55/64 in
Height 7 43/64 in
Depth 3 15/64 in
For Shaft Diameter 1/2 in
For Shaft Height 1/2 in
Overall Width 3 7/8 in
Overall Height 7 5/8 in
Overall Depth 3 1/4 in
For Shaft Width 1/2 in

Details

Shaft Type 3/8 in to 1/2 in Round or 3/8 in to 7/16 in Square
Mounting Type Direct Mount
Signal Type On/Off
Voltage 120V AC
Ambient Temp. Range -22 Degrees to 122 Degrees F
Timing 75 sec
Stroke Deg. 0 to 95
Torque 35 in-lb
Power Rating 5.5W
Switch Type SPDT
Motor Direction CW or CCW
Spring Return Spring Return
Includes Mounting Hardware
Item Actuator
Input Voltage 120V AC
Product Type Damper Actuator
Housing Material Finish Galvanized
Rated Torque 35 in-lb
IP Rating IP54
Time to Close 75 sec
Electrical Connection Type Hardwired
Minimum Operating Temperature -22 Degrees F
NEMA Rating 2
Stroke Degree 95 Degrees
Shaft Rotation CW/CCW
For Shaft Shape Round, Square
Contact Form SPDT
Maximum Operating Temperature 122 Degrees F
Housing Material Steel
Weight 3.8 lb
Valve Application Damper
For Use With Building Automation Systems Building Automation System Compatible
Number of Auxiliary Switches 1
Power Consumption 7.5 VA
Application Dampers

Description

Actuator, Valve Application Damper, Signal Type On/Off, Rated Torque 35 in-lb, Input Voltage 120V AC, Output Signal Not Applicable, Contact Form SPDT, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Time to Close 75 sec, Shaft Type 3/8 in to 1/2 in Round or 3/8 in to 7/16 in Square, Shaft Rotation CW/CCW, Stroke Degree 95 Degrees , Mounting Type Direct Mount
