Belimo

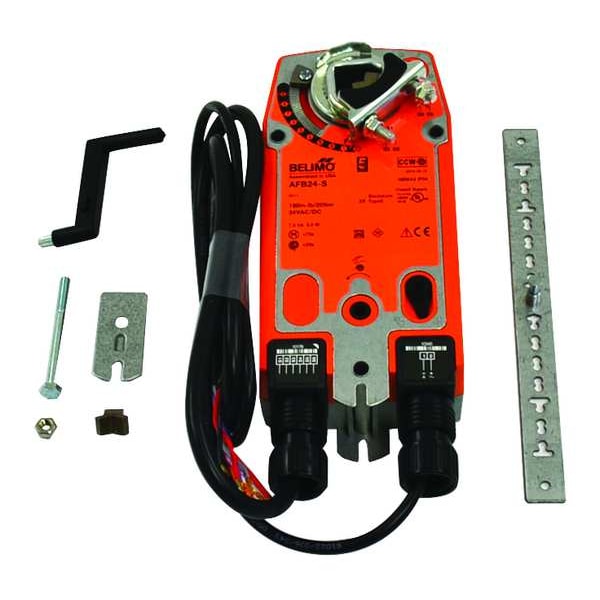

Spring Return Damper Actuator, 24VAC/DC

product price: $397.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Spring Return Spring Return
  • Shaft Type 1/2 in to 1-3/64 in Round
  • Depth 3 27/64 in
  • Ambient Temp. Range -22 Degrees to 122 Degrees F
  • Timing 75 sec
See all product information

Product Information

Dimensions

Depth 3 27/64 in
Width 3 5/32 in
Height 9 11/16 in
Overall Depth 3 3/8 in
Overall Height 9 3/4 in
Overall Width 3 1/8 in
For Shaft Diameter 1 in

Details

Spring Return Spring Return
Shaft Type 1/2 in to 1-3/64 in Round
Ambient Temp. Range -22 Degrees to 122 Degrees F
Timing 75 sec
Power Rating 5W
Torque 180 in-lb
Voltage 24V AC/DC
Item Actuator
Switch Type 2 SPDT
Includes Mounting Hardware
Signal Type On/Off
Stroke Deg. 0 to 95
Motor Direction CW or CCW
Input Voltage 24V AC/DC
Minimum Operating Temperature -22 Degrees F
Maximum Operating Temperature 122 Degrees F
Time to Close 75 sec
IP Rating IP54
Electrical Connection Type Hardwired
Housing Material Finish Galvanized
Housing Material Steel
For Use With Building Automation Systems Building Automation System Compatible
Power Consumption 7.5 VA
NEMA Rating 2
For Shaft Shape Round
Rated Torque 180 in-lb
Valve Application Damper
Shaft Rotation CW/CCW
Contact Form SPDT
Product Type Damper Actuator
Weight 5.6 lb
Number of Auxiliary Switches 2
Stroke Degree 95 Degrees
Application Dampers

Description

Actuator, Valve Application Damper, Signal Type On/Off, Rated Torque 180 in-lb, Input Voltage 24V AC/DC, Output Signal Not Applicable, Contact Form SPDT, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Time to Close 75 sec, Shaft Type 1/2 in to 1-3/64 in Round, Shaft Rotation CW/CCW, Stroke Degree 95 Degrees , Maximum Operating Temperature 122 Degrees F
