  9. Spring Return Damper Actuator, 24VAC/DC
Shop All Control Parts
Belimo

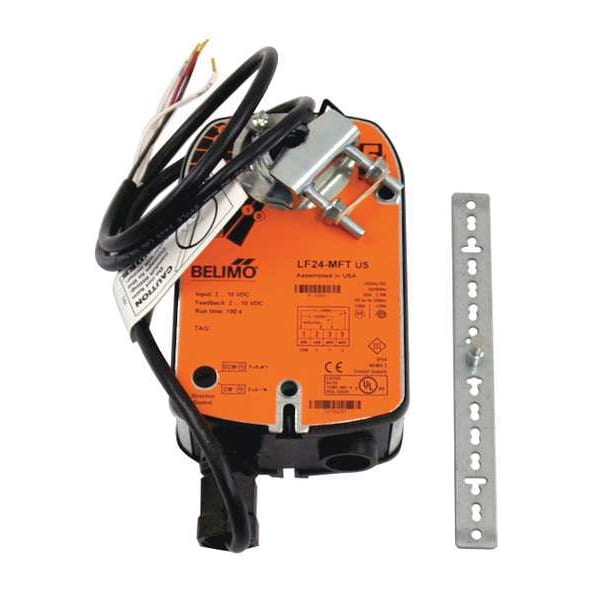

Spring Return Damper Actuator, 24VAC/DC

product price: $342.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Power Rating 2.5W
  • Mounting Type Direct Mount
  • Shaft Type 3/8 in to 1/2 in Round or 3/8 in to 7/16 in Square
  • Spring Return Spring Return
  • Voltage 24V AC/DC
See all product information

Product Information

Dimensions

Height 7 43/64 in
Width 3 55/64 in
Depth 3 15/64 in
Overall Height 7 5/8 in
Overall Depth 3 1/4 in
For Shaft Diameter 1 in
Overall Width 3 7/8 in

Details

Power Rating 2.5W
Mounting Type Direct Mount
Shaft Type 3/8 in to 1/2 in Round or 3/8 in to 7/16 in Square
Spring Return Spring Return
Voltage 24V AC/DC
Stroke Deg. 0 to 95
Ambient Temp. Range -22 Degrees to 122 Degrees F
Timing 150 sec
Torque 35 in-lb
Includes Mounting Hardware
Signal Type Multi-Functional Technology (MFT)
Motor Direction CW or CCW
Item Actuator
Input Voltage 24V AC/DC
Electrical Connection Type Hardwired
Housing Material Steel
Maximum Operating Temperature 122 Degrees F
Time to Close 150 sec
Weight 3.3 lb
For Shaft Shape Round
Compatible Building Automation Protocols BACnet MS/TP, LonWorks, Modbus
IP Rating IP54
For Use With Building Automation Systems Building Automation System Compatible
Rated Torque 35 in-lb
Power Consumption 5 VA
NEMA Rating 2
Stroke Degree 95 Degrees
Valve Application Damper
Product Type Damper Actuator
Housing Material Finish Galvanized
Number of Auxiliary Switches 0
Minimum Operating Temperature -22 Degrees F
Shaft Rotation CW/CCW
Application Dampers

Description

Actuator, Valve Application Damper, Signal Type Multi-Functional Technology (MFT), Rated Torque 35 in-lb, Input Voltage 24V AC/DC, Output Signal Not Applicable, Contact Form Not Applicable, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Time to Close 150 sec, Shaft Type 3/8 in to 1/2 in Round or 3/8 in to 7/16 in Square, Shaft Rotation CW/CCW
