  9. Spring Return Damper Actuator, 24VAC/DC
Shop All Control Parts
Belimo

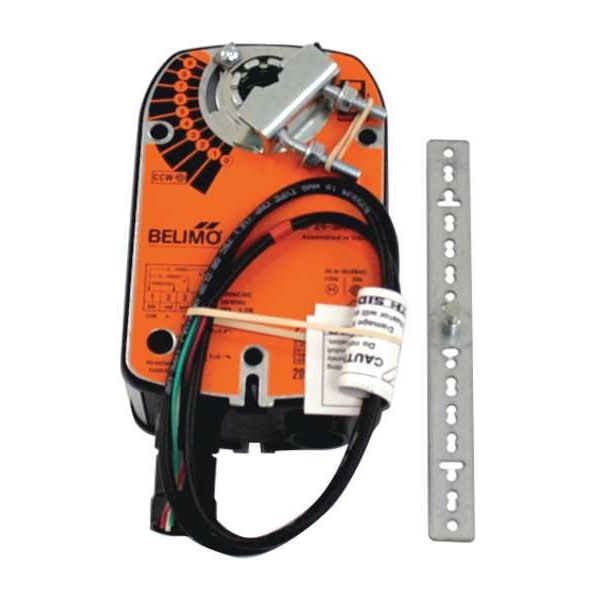

Spring Return Damper Actuator, 24VAC/DC

original price: $325.99
9% off
new price: $294.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting Type Direct Mount
  • Power Rating 2.5W
  • Includes Mounting Hardware
  • Spring Return Spring Return
  • Timing 150 sec
See all product information

Product Information

Dimensions

Depth 3 15/64 in
Width 3 55/64 in
Height 7 43/64 in
Overall Height 7 5/8 in
For Shaft Diameter 1 in
Overall Width 3 7/8 in
Overall Depth 3 1/4 in

Details

Mounting Type Direct Mount
Power Rating 2.5W
Includes Mounting Hardware
Spring Return Spring Return
Timing 150 sec
Stroke Deg. 0 to 95
Motor Direction CW or CCW
Signal Type Proportional
Ambient Temp. Range -22 Degrees to 122 Degrees F
Item Actuator
Voltage 24V AC/DC
Torque 35 in-lb
Shaft Type 3/8 in to 1/2 in Round or 3/8 in to 7/16 in Square
Input Voltage 24V AC/DC
Minimum Operating Temperature -22 Degrees F
Weight 3.4 lb
For Shaft Shape Round
Time to Close 150 sec
Housing Material Finish Galvanized
Valve Application Damper
Rated Torque 35 in-lb
Electrical Connection Type Hardwired
Housing Material Steel
Number of Auxiliary Switches 0
IP Rating IP54
For Use With Building Automation Systems Building Automation System Compatible
Maximum Operating Temperature 122 Degrees F
Shaft Rotation CW/CCW
NEMA Rating 2
Product Type Damper Actuator
Power Consumption 5 VA
Stroke Degree 95 Degrees
Application Dampers

Description

Actuator, Valve Application Damper, Signal Type Proportional, Rated Torque 35 in-lb, Input Voltage 24V AC/DC, Output Signal Not Applicable, Contact Form Not Applicable, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Time to Close 150 sec, Shaft Type 3/8 in to 1/2 in Round or 3/8 in to 7/16 in Square, Shaft Rotation CW/CCW, Stroke Degree 95 Degrees
