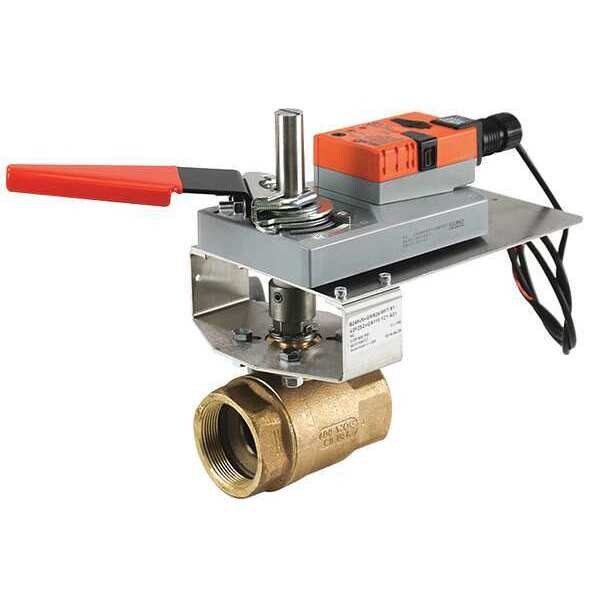

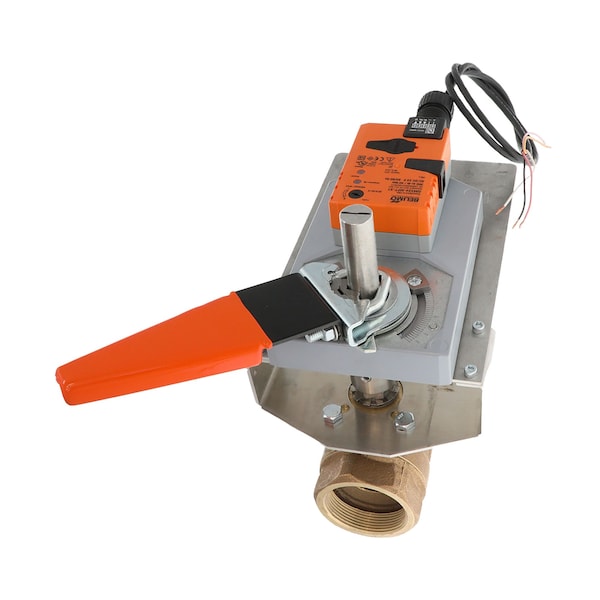

Valve Assembly, 2in, Non Spring Return

  • Mfr # B249VS+GMX24MFTX1

  • Zoro # G2495066

product price:
$
2,065.99
/ea
Free Shipping & Returns

Key Features

For Use With
Air Handling Units; Unit Ventilators; Hydronic System with Variable Flow
Voltage
24VAC/DC
Features
Actuator Type
Standards
ISO 9001
Overall Length
10 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
B249VS+GMX24MFTX1
Zoro #
G2495066
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
10 in
Overall Depth
4 5/8 in
Overall Width
11 7/8 in
Wire Rope Length
10 in
Length
10 in

Details

Item
Valve Assembly,2", Non Spring Return
For Use With
Air Handling Units; Unit Ventilators; Hydronic System with Variable Flow
Voltage
24VAC/DC
Features
Actuator Type
Standards
ISO 9001
Application
Chilled/Hot Water Control
Actuator Voltage
24V AC
Stem Material
Stainless Steel
For Media
Steam, Water-Glycol Solution to 50%, Water
Actuator Housing Material
Stainless Steel
Frequency
50/60 Hz
Operating Temperature - Minimum
-22 Degrees F
Fluid Temperature - Minimum
-22 Degrees F
Body Pattern
Two-Way
Operating Temperature - Maximum
122 Degrees F
Fluid Temperature - Maximum
280 Degrees F
Valve Type
Ball
Port Connection Type
NPT
Coefficient of Volume (Cv)
108
Spring Action
Non-Spring Return
Body Material
Bronze
Close-Off Pressure
600 psi
Port Connection Gender
Female
Product Type
Zone Valve

Description

Zone Valve, Actuator Housing Material Stainless Steel, Actuator Voltage 24V AC, Application Chilled/Hot Water Control, Body Material Bronze, Body Pattern Two-Way, Close-Off Pressure 600 psi, Coefficient of Volume (Cv) 108, Fluid Temperature - Maximum 280 Degrees F, Fluid Temperature - Minimum -22 Degrees F, For Media Steam, Water-Glycol Solution to 50 Percent, Water, Frequency 50/60 Hz, Operating Temperature - Maximum 122 Degrees F, Operating Temperature - Minimum -22 Degrees F
