Bell & Gossett

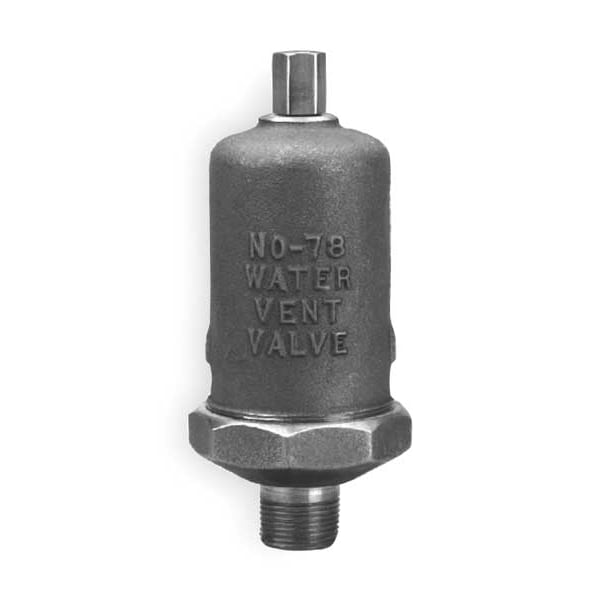

Air Vent, Float, Max Operating PSI 150

original price: $338.53
24% off
new price: $256.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Automatic Float
  • (M)NPT Connection (In.) 3/4 in
  • Max. Pressure (PSI) 150 psi
  • Material Brass and SS
  • Connection 3/4 in (M)NPT
See all product information

Product Information

Dimensions

Overall Width 2 11/16 in
Inlet Port Connection Size 3/4 in
Outlet Port Connection Size 1/8 in
Overall Length 6 1/2 in

Details

Item Air Vent
Type Automatic Float
(M)NPT Connection (In.) 3/4 in
Max. Pressure (PSI) 150 psi
Material Brass and SS
Connection 3/4 in (M)NPT
Max. Temp. (F) 250 Degrees F
Construction Base Cast Brass, Float Stainless Steel, Pin Stainless Steel, Seat Brass, Shell Cast Brass
Inlet Port Connection Type NPT
Installation Orientation Vertical
Number of Inlet Ports 1
Relief Port Location Top
Float Material Stainless Steel
Inlet Port Connection Gender Male
Inlet Port Location Bottom
Operating Pressure - Maximum 150 psi
Manufacturer Series Hoffman Specialty
Port Types Included Inlet, Outlet
Condensate Capacity 3,825 lb/hr
Air Vent Type Float
Number of Outlet Ports 1
Configuration One Port
Allowable Pressure - Maximum 150 psi
Body Material Brass
Application High Pressure Hot or Cold Water or Glycol Mains
Product Type Air Vent
Operating Temperature - Maximum 250 Degrees F
For Media Water
Outlet Port Connection Type NPT

Description

Air Vent, Air Vent Connection Gender Not Applicable, Air Vent Connection Size Not Applicable, Air Vent Connection Type Not Applicable, Air Vent Type Float, Allowable Pressure - Maximum 150 psi, Application High Pressure Hot or Cold Water or Glycol Mains, Body Material Brass, Condensate Capacity 3,825 lb/hr, Configuration One Port, Float Material Stainless Steel, For Media Water, Inlet Port Connection Gender Male, Inlet Port Connection Size 3/4 in, Inlet Port Connection Type NPT
