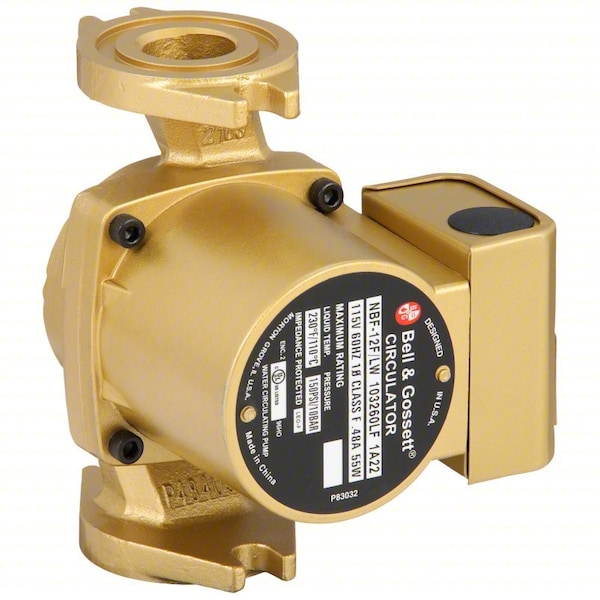

Bell & Gossett Circulating Pump, Flange, 1/14hp, 115VAC 103260LF - main

Circulating Pump, Flange, 1/14hp, 115VAC

  • Mfr # 103260LF

  • Zoro # G205848756

product price: $500.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Phase
Single
Horsepower
1/14 hp
Series
NBF, SSF
Pump Type
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
103260LF
Zoro #
G205848756
UPC #
683328221762
Country of Origin
China

Dimensions

Face to Face Dimension
6 3/8 in
Manufacturer Warranty Length
3 yr
Compatible Intake Pipe Size
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
Overall Length
5.56 in
Overall Width
4.88 in
Compatible Discharge Pipe Size
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
Overall Height
6.38 in
For Discharge Pipe Diameter
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
For Inlet Pipe Diameter
3/4 in, 1 in, 1 1/4 in, 1 1/2 in

Details

Item
Circulating Pump
Voltage
115V AC
Phase
Single
Horsepower
1/14 hp
Series
NBF, SSF
Pump Type
Standard
Number of Speeds
1
Maximum Feet of Head
12 ft
Connection Type
Flange
Maximum Flow Rate @ 10 Feet of Head
3 gpm
Pump Mounting Position
Horizontal, Vertical
Maximum Media Temperature
225 Degrees F
Nameplate Voltage
115V AC
Impeller Material
Plastic
Maximum Flow Rate @ 5 Feet of Head
10 gpm
Compatible Media Type
Water
Maximum Flow Rate @ 1 Feet of Head
18 gpm
Body Gasket Material
Carbon
Number of Flange Mounting Holes
2
Amps
0.48 A
Pump Housing Material
Bronze
Electrical Connection Type
Hardwired
Flange or Union Included
No
Frequency
60 Hz
Series Family
NBF
Priming
Self-Priming
Motor Enclosure Design
Totally Enclosed Non-Ventilated
For Use With Potable Systems
Yes
Standards
ANSI 372, CSA Certified, NSF 372
Maximum RPM
2,800 RPM
Rotor Type
Wet
Maximum Operating Pressure
150 psi
Wetted Material
Ceramic, Lead Free Bronze, Plastic
Flow Rate - Maximum
18 gpm
Media Temperature - Minimum
14 Degrees F
Media Temperature - Maximum
225 Degrees F
Revolutions Per Minute - Maximum
2,800 RPM
For Low Lead Compliance Level
CE
Full Load Current
0.48 A
Includes Flange
No Flange Included
Pump Casing Material
Bronze
Mounting Orientation
Horizontal, Vertical
Includes Volute
Volute Included
Connection Standard
Flange
Feet of Head - Maximum
12 ft
Operating Pressure - Maximum
150 psi
NSF Certifications for Food and Drinking Water
NSF 372

Description

Circulating Pump, Compatible Intake Pipe Size 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, Connection Type Flange, Face to Face Dimension 6 3/8 in, Flange or Union Included No, For Use With Potable Systems Yes, Horsepower 1/14 hp, Maximum Feet of Head 12 ft, Maximum Flow Rate @ 10 Feet of Head 3 gpm, Maximum Flow Rate @ 1 Foot of Head 18 gpm, Nameplate Voltage 115V AC, Number of Speeds 1, Phase Single, Pump Type Standard, Series Family NBF, Maximum Flow Rate @ 5 Feet of Head 10 gpm, Series NBF, SSF
