  9. HVAC Circulating Pump, 1/4 hp, 115V/208V-230V, 1 Phase, Flange Connection
Shop All Hot Water Circulating Pumps
Bell & Gossett

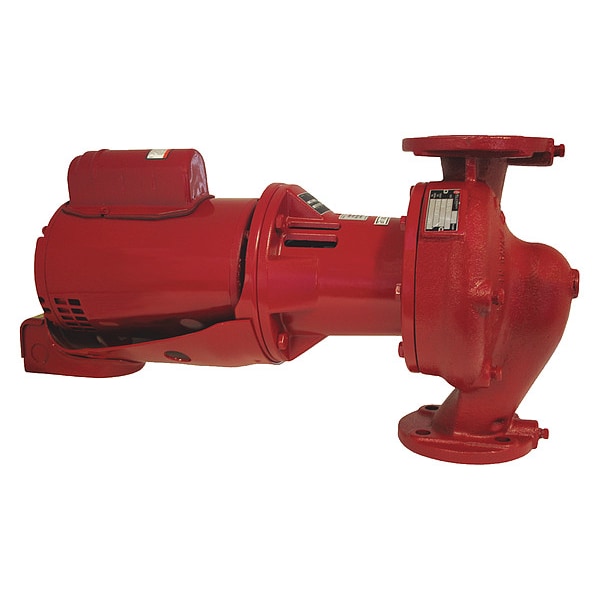

HVAC Circulating Pump, 1/4 hp, 115V/208V-230V, 1 Phase, Flange Connection

product price: $1,387.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115/208-240V AC
  • HP 1/4 hp
  • Housing Material Cast iron
  • Phase Single
  • Phase - Pumps 1
See all product information

Product Information

Dimensions

Inlet/Outlet Size 1 in
Height 11 in
Face to Face Dimension 11 in
Manufacturers Warranty Length 3 yr
Length 19 7/8 in
Width 7 1/2 in
Overall Height 11 in
Overall Width 7.5 in
Overall Length 19.88 in
Compatible Intake Pipe Size 1 in
Manufacturer Warranty Length 3 yr
Compatible Discharge Pipe Size 1 in

Details

Voltage 115/208-240V AC
Item Hydronic Circulating Pump
HP 1/4 hp
Housing Material Cast iron
Phase Single
Phase - Pumps 1
Pump Type 3-Piece
Connection Style Flange
Max. GPM @ Head 40 gpm @ 11 ft
Min. GPM @ Head 10 gpm @ 18 ft
Series E601S
RPM 1,750 RPM
Shaft Material Steel
Housing Material - Pumps Cast Iron
Voltage - Pumps 115/208 to 230V AC
Max. Operating Pressure 175 psi
Flange/Union Included Yes
Max. Temp. 250 Degrees F
Drive Type Direct
Loop Configuration Closed
Thermal Protection yes
Standards ISO 9001
Best Efficiency GPM @ Head 26 gpm @ 16 ft
Shut-Off 18 ft
Pump Mount In Line
Number of Speeds 1
Mechanical Seal EPR/Carbon/Silicon Carbide
Impeller Material Bronze
HVAC Circulating Pump Type Hot Water Circulating Pump
Features Dimensional Interchangeability with Legacy Series 60, Leading Hydraulic Efficiency, Upgraded Unitized Mechanical Seal
Amps 1.4/2.8 A
Compliance CSA, NSF-372
Maximum Feet of Head 18 ft
Maximum Flow Rate @ 1 Feet of Head 20 gpm
Body Gasket Material Cellulose Fiber
Compatible Media Type Water
Minimum Media Temperature -10 Degrees F
For Use With Potable Systems Yes
Nameplate Voltage 115/208-230V AC
Horsepower 1/4
Pump Housing Material Cast Iron
Flange or Union Included Yes
Maximum Operating Pressure 175 psi
Connection Type Flange
Maximum Flow Rate @ 50 Feet of Head [DELETE]
Series Family E-60
Maximum RPM 1,750 RPM
Maximum Flow Rate @ 15 Feet of Head 20 gpm
Maximum Media Temperature 225 Degrees F
Maximum Flow Rate @ 5 Feet of Head 55 gpm
Maximum Flow Rate @ 10 Feet of Head 45 gpm

Description

Hydronic Circulating Pump, Compatible Intake Pipe Size 1 in, Connection Type Flange, Face to Face Dimension 11 in, Flange or Union Included Yes, For Use With Potable Systems Yes, Horsepower 1/4, Maximum Feet of Head 18 ft, Maximum Flow Rate @ 10 Feet of Head 45 gpm, Maximum Flow Rate @ 15 Feet of Head 20 gpm, Nameplate Voltage 115/208-230V AC, Number of Speeds 1, Phase Single, Pump Type 3-Piece, Series Family E-60, Maximum Flow Rate @ 5 Feet of Head 55 gpm, Series E601S, Amps 1.4/2.8 A
