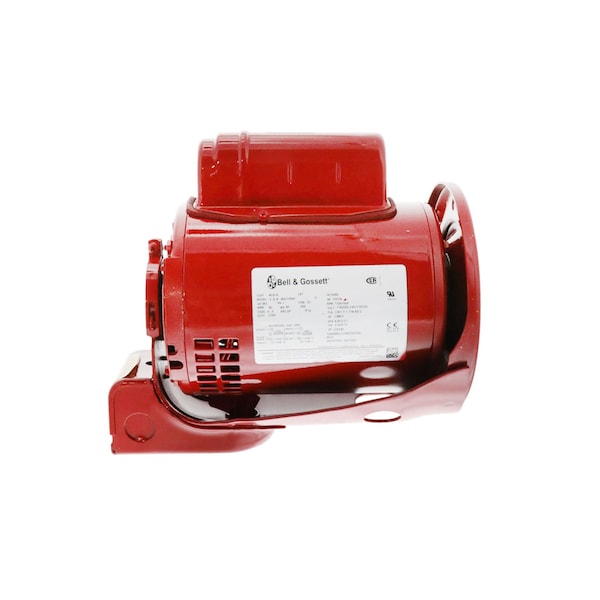

Bell & Gossett Motor, 1/3 HP, 1750 rpm, 1 Phase 169226 - main

Motor, 1/3 HP, 1750 rpm, 1 Phase

  • Mfr # 169226

  • Zoro # G2491511

product price:  $1,615.99
/ea
Free Shipping & Returns

Key Features

Fits Brand
Bell and Gossett
Voltage
115/208 to 240V AC
Standards
CE, CS, UL Recognized
Phase
Single
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
169226
Zoro #
G2491511
UPC #
-
Country of Origin
United States

Dimensions

Bolt Circle Diameter
5 7/8 in
Manufacturer Warranty Length
1.5 yr

Details

Fits Brand
Bell and Gossett
Item
Motor, 1/3 HP, 1750 rpm, 1 Phase
Voltage
115/208 to 240V AC
Standards
CE, CS, UL Recognized
Phase
Single
No. of Speeds
1
Motor Thermal Protection
Auto
Motor Enclosure Design
Open Drip Proof
HP
1/3
Compatible with Series Family
BE602, BE602T, BE605S, BE605T, BE607S, BE607T, E602S, E602T, E605S, E605T, E607S, E607T
Maximum RPM
1,725 RPM
Compatible with Pump Type
In-Line Circulating Pumps
Minimum Ambient Temperature
40 Degrees F
Nameplate Voltage
115/208-230V AC
Revolutions Per Minute - Maximum
1,725 RPM
Ambient Temperature - Minimum
40 Degrees F
Compatible with Manufacturer Model Number
602S, 602T, B602, B602T, 605S, 605T, B605S, B605T, 607S, 607T, B607S, B607T, e602S, e602T, Be602, Be602T, e605S, e605T, Be605S, Be605T, e607S, e607T, Be607S, Be607T, Series e-60, 60
Thermal Protection
Auto
Electrical Connection Type
Hardwired
Frequency
50/60 Hz
Full Load Current
3.5/1.7-1.7//4.4/2.2A
Compatible with Series
Series 60, Series e-61
Motor Frame Designation
56Z
Compatible Manufacturer Model Number
602S, 602T, B602, B602T, 605S, 605T, B605S, B605T, 607S, 607T, B607S, B607T, e602S, e602T, Be602, Be602T, e605S, e605T, Be605S, Be605T, e607S, e607T, Be607S, Be607T, Series e-60, 60
Compatible Manufacturer Part Number
602S, 602T, B602, B602T, 605S, 605T, B605S, B605T, 607S, 607T, B607S, B607T, e602S, e602T, Be602, Be602T, e605S, e605T, Be605S, Be605T, e607S, e607T, Be607S, Be607T, Series e-60, 60
Horsepower
3/8 hp
Compatible with Brand
Bell & Gossett
Number of Speeds
1

Description

Circulating Pump Motor, Compatible with Brand Bell & Gossett, Compatible Grainger Part Number 4RD78, 5YN79, Compatible Manufacturer Part Number 602S, 602T, B602, B602T, 605S, 605T, B605S, B605T, 607S, 607T, B607S, B607T, e602S, e602T, Be602, Be602T, e605S, e605T, Be605S, Be605T, e607S, e607T, Be607S, Be607T, Series e-60, 60, Compatible with Pump Type In-Line Circulating Pumps, Compatible with Series Series 60, Series e-61
