  9. Power Pack, 1/6 HP, 1725 rpm, 115V

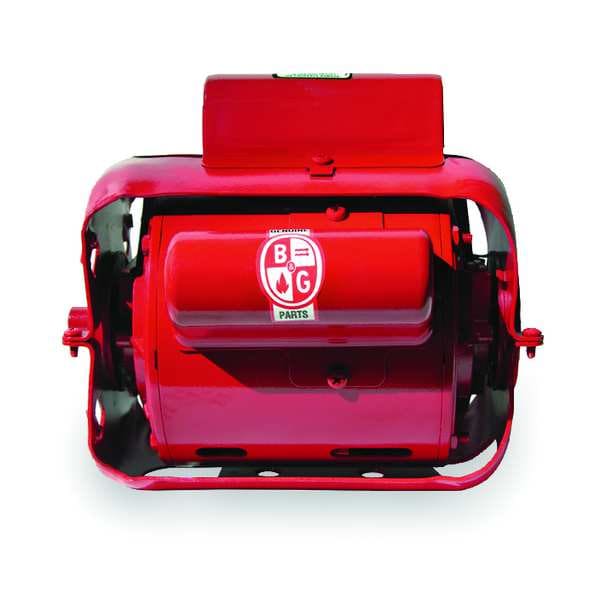

Bell & Gossett Power Pack, 1/6 HP, 1725 rpm, 115V 111061 - main

Power Pack, 1/6 HP, 1725 rpm, 115V

  • Mfr # 111061

  • Zoro # G0453494

product price: $864.99
/ea
Free Shipping & Returns

Key Features

For Use With Mfr. Model Number
102210, 102214, 2" BNFI, HV BNFI
Frame Material
Cast Iron
Motor Application
Pump
Hz
60
For Pump Number
4RC93, 4RC94, 4RC95, 4RC96
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
111061
Zoro #
G0453494
UPC #
683328220154
Country of Origin
United States

Details

Item
Circulating Pump Motor
For Use With Mfr. Model Number
102210, 102214, 2" BNFI, HV BNFI
Frame Material
Cast Iron
Motor Application
Pump
Hz
60
For Pump Number
4RC93, 4RC94, 4RC95, 4RC96
Full Load Amps
1.90
RPM Range
1,701-1,800
Motor Design
Split-Phase
Ring to Ring Center
6 3/4 in
Motor Shaft Rotation
CCWLE
Motor Enclosure Design
Open Drip Proof
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Voltage
115V AC
HP
1/6
Phase
Single
Nameplate RPM
1,725
Motor Frame Material
Cast Iron
Motor Thermal Protection
Auto
Motor Mounting Type
Cradle Base
Frame
B&G Frame 5 in
Motor Sub Application
Water Circulator
Usable @ 208V
No
No. of Speeds
1
Usable @ 200V
No
Compatible with Series
W02210, W02213(OBS), W02213LF, W02214, W02217(OBS), W02217LF
Maximum RPM
1,725 RPM
Nameplate Voltage
115V AC
Minimum Ambient Temperature
32 Degrees F
Compatible with Pump Type
In-Line Circulating Pumps
Number of Speeds
1
Maximum Ambient Temperature
104 Degrees F
Full Load Current
1.9 A
Horsepower
1/4 hp
Compatible with Brand
Bell & Gossett
Compatible with Manufacturer Model Number
102210, 102214, 2" BNFI, HV BNFI
Compatible with Series Family
HV
Frequency
60 Hz
Compatible Manufacturer Part Number
102210, 102214, 2" BNFI, HV BNFI
Compatible Manufacturer Model Number
102210, 102214, 2" BNFI, HV BNFI
Compatible with Manufacturer Model No.
102210, 102214, 2" BNFI, HV BNFI
Compatible with Mfr. Model No.
102210, 102214, 2" BNFI, HV BNFI
For Use with Mfr Model Number
102210, 102214, 2" BNFI, HV BNFI
Compatible Pump Manufacturer Part Number
102210, 102214, 2" BNFI, HV BNFI
Compatible Mfr. Model Number
102210, 102214, 2" BNFI, HV BNFI
Motor Frame Designation
Bell & Gossett 5" Frame
Revolutions Per Minute - Maximum
1,725 RPM
Ambient Temperature - Maximum
104 Degrees F
Ambient Temperature - Minimum
32 Degrees F
Thermal Protection
Auto

Description

Circulating Pump Motor, Compatible with Brand Bell & Gossett, Compatible with Grainger Part No. 4RC93, 4RC94, 4RC95, 4RC96, Compatible with Mfr. Model No. 102210, 102214, 2 In. BNFI, HV BNFI, Compatible with Pump Type In-Line Circulating Pumps, Compatible with Series W02210, W02213(OBS), W02213LF, W02214, W02217(OBS), W02217LF, Compatible with Series Family HV, Horsepower 1/6 hp, Maximum Ambient Temperature 104 Degrees F, Maximum RPM 1,725 RPM, Minimum Ambient Temperature 32 Degrees F
