Shop BELL & GOSSETT

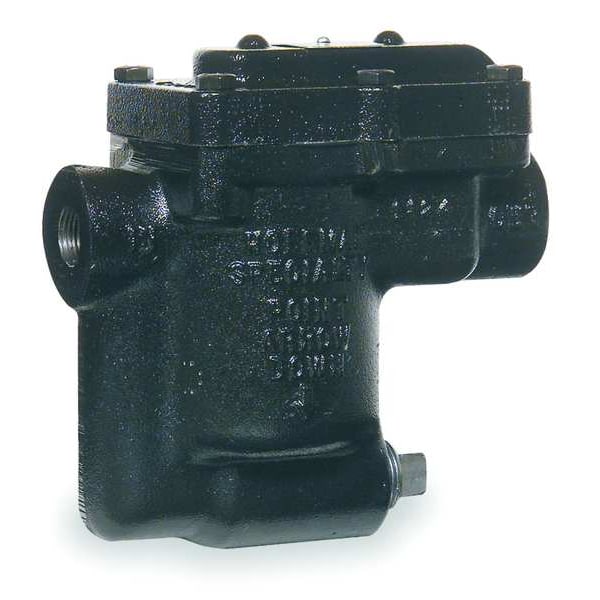

Steam Trap, 450F, Cast Iron, 0 to 75 psi

  • Mfr # B1075S-3
  • Zoro # G2598084
product price:
$
347.99
/ea
Free Shipping & Returns

Key Features

(F)NPT Connections
3/4 in
Max. Operating PSI
75 psi
End to End Length
6 15/16 in
Condensate Capacity Lbs/Hr
1,200 lb/hr
Max. Temp.
450 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
B1075S-3
Zoro #
G2598084
UPC #
751875055816
Country of Origin
United States
Item
Steam Trap
(F)NPT Connections
3/4 in
Max. Operating PSI
75 psi
Condensate Capacity Lbs/Hr
1,200 lb/hr
Max. Temp.
450 Degrees F
Body Material
Cast Iron
Application
Dry Cleaning Plants, Laundry, Steam Mains
Type
Inverted Bucket
NPT Inlet
3/4 in
NPT Port
3/4 in
Pipe Configuration
In Body, In Line
NPT Outlet
3/4 in
Downstream PSI Range
0 to 75 psi
Maximum Capacity at Maximum Pressure Load
1,200 lb/hr at 75 psi
Steam Trap Type
Inverted Bucket
Includes Air Vent
Air Vent Not Included
Float Material
Stainless Steel
Operating Pressure - Maximum
75 psi
Resistance Properties
Corrosion Resistant, Water Hammer Resistant
Installation Orientation
Horizontal
Condensate Capacity
1,200 lb/hr
Port Connection Gender
Female
Valve Pin Material
Stainless Steel
Manufacturer Series
B1
Operating Temperature - Maximum
450 Degrees F
Distance Between Inlet and Outlet Port
6 15/16 in
Body Material Tensile Strength
30,000 psi
Configuration
In-line
Lever Assembly Material
Stainless Steel
Port Connection Type
NPT
Includes Strainer
Strainer Included

Description

Steam Trap, Application Dry Cleaning Plants, Laundry, Steam Mains, Body Material Cast Iron, Body Material Tensile Strength 30,000 psi, Condensate Capacity 1,200 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 6 15/16 in, Float Material Stainless Steel, Includes Air Vent Air Vent Not Included, Includes Strainer Strainer Included, Installation Orientation Horizontal, Lever Assembly Material Stainless Steel, Manufacturer Series B1
