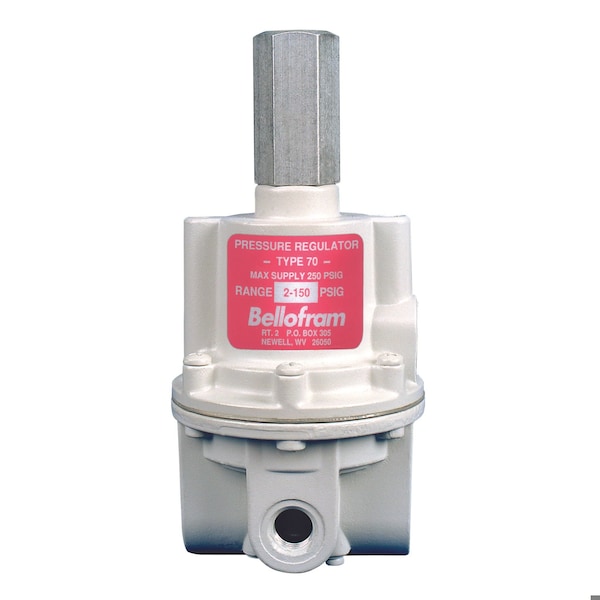

Pressure Regulator, Relieving, T70 Series, 2-150 PSIG, 1/4in Port

The Type 70 Regulator is specifically designed for applications that require substantial flow capacity and accurate pressure controls. Flows of 80 SCFM 2250 LPM can be attained. Downstream pressure can be set within 0.25 in. 6.3mm of water column and is accurately maintained under varying flow conditions with the help of an aspirator tube which adjusts the air supply in accordance with the flow velocity. A balanced supply valve, utilizing a rolling diaphragm, makes the regulator virtually immune to changes in supply pressure. The Type 70 has a rugged precision die cast aluminum housing, and is pressure-tested and chromatetreated for internal corrosion resistance. The regulator housing is finished with vinyl paint which resists scratching, weathering and other physical abuse.
