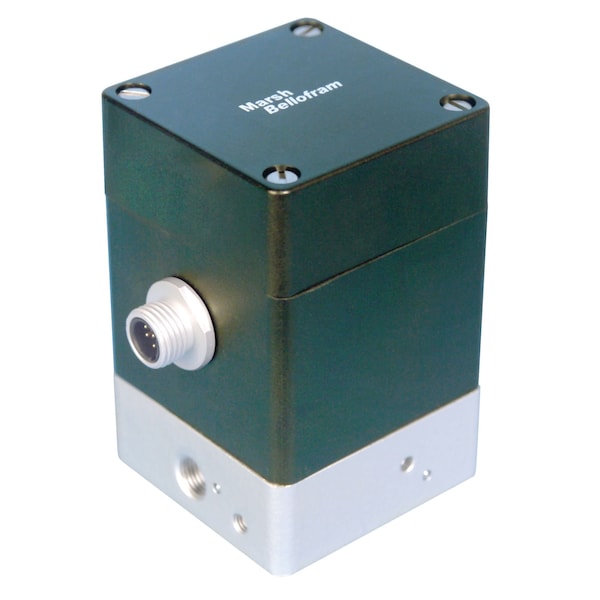

Transducer, Electro-Pneumatic, Type E/P, 0-80 psi, 0-10VDC, CMOS Logic Output

The Type 3210 single loop and 3220 double loop electro-pneumatic servo pressure controllers incorporate two solenoid valves and an internal pressure sensor for increased sensitivity and accuracy. With current or voltage signal inputs, the Type 3210/3220 controls an output pressure with an accuracy of ± .5% or better full scale. A wide range of output pressures available, from 29 Hg vacuum to 600 psig. With a flow of 1.25 SCFM at 100 psi, the 3210/3220 can be used alone or in conjunction with a volume booster to achieve flow rates in excess of 2,000 SCFM. The double loop 3220 option permits 0-10 VDC feedback from a remote sensor.
