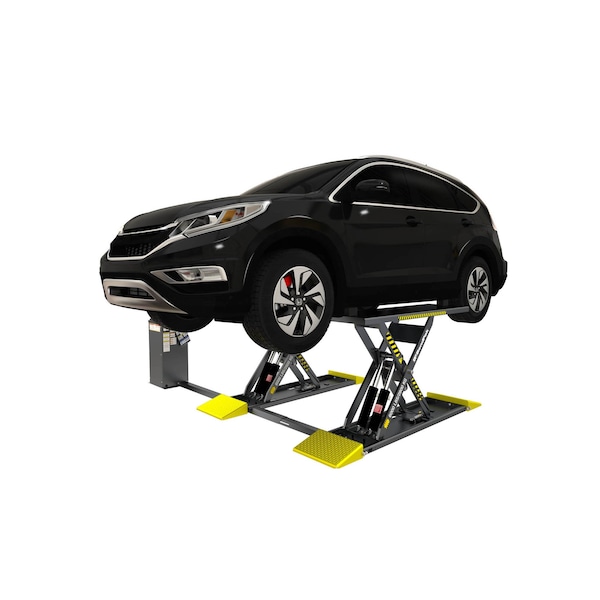

6,000-lb. Capacity / Mid-Rise Scissor Lift / Open-Center

The MDS-6 Series RevolutionThis open-center mid-rise lift is a mechanical marvel. Decades of experience have taught us a thing or two about designing equipment to safely connect to virtually any vehicle's OEM lift points. A car lift with longer platforms means you get to lift more vehicle types than ever. Some well-meaning shops risk the personal safety and well-being of the vehicles they work on because their lifts don't full reach those OEM jack points. BendPak's redesigned MDS-6LP corrects that problem once and for all with longer platforms. Its extended lift point spread means vehicles with long wheelbases can be safely raised in seconds flat.Add or remove ramps at your leisureConverting your low-rise lift to a flush-mount design is now easier than ever. Our design lets the ramps attach directly to the platform. This makes it easy to work on elevated vehicles, especially in the wheel well area. The approach ramps have slotted receivers and simply drop into place. They are easily removed by pulling upward for rapid disconnect from the frames.Stronger lift from a collapsed positionThe MDS-6LP mid-rise lift has a pivoting kicker mechanism that helps lift low ground-clearance vehicles. Unfortunately, some scissor have poor mechanical advantage when fully lowered. They have no lifting force until the frames rise a few inches. Our kicker is like having booster rockets for the first six inches of upward movement.

• • Each lift platform features four solid steel-scissor frame support bars, making it one of the strongest mid-rise lifts in its class
• • Dual master hydraulic cylinder combines with dual equalizing cylinders to provide a safe and level 6,000 pound lifting capacity
• • Solid‐steel safety lock bars engage automatically during ascent
• • Convenient stainless‐steel pneumatic cylinders simultaneously release safety locks during descent with a simple push of a button. (NOTE: Requires min. 50 psi, 10 CFM air source at time of installation.)
• • A push‐button safety lock release system is operated away from the lift and allows operators to safely deactivate the locks without the need to push or pull cumbersome release bars or lock release handles
