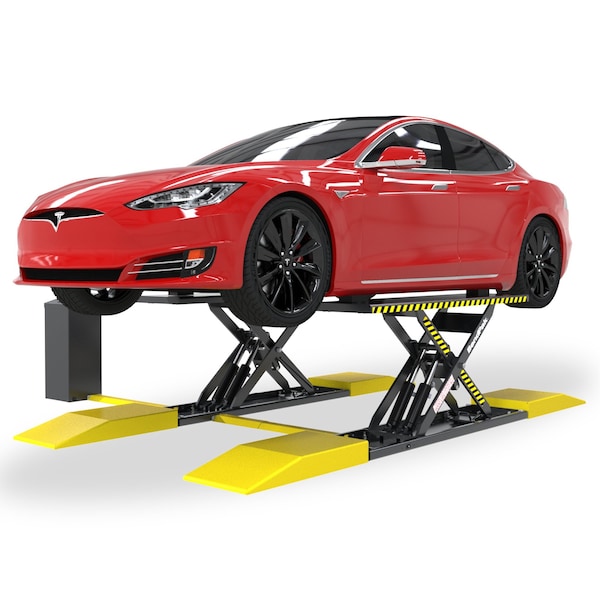

Extended Platform, Mid-Rise Scissor Lift Open-Center

Stronger lift from a collapsed positionThe MDS-6EXT has a pneumatic kicker that literally boosts the lift platforms for the first 6 of lift. This is important because a scissor lift's convenience also creates a mechanical disadvantage that we found a way around. In other words, being able to lower the lift a mere 4 off the ground makes the physics of lifting heavy machinery difficult. This is especially true when ensuring this lift occupies as little space in your shop as possible. Therefore, air-powered rocket boosters are installed that assist the hydraulics in the initial lifting phase. They never need maintenance and will ensure your lifting life is easier than ever. It's pretty cool that air rockets are on your lift, if we say so ourselves.

• • Each lift platform features four solid steel-scissor frame support bars, making it one of the strongest mid-rise lifts in its class
• • Dual master hydraulic cylinder combines with dual equalizing cylinders to provide a safe and level 6,000 pound lifting capacity
• • Solid‐steel safety lock bars engage automatically during ascent
• • Convenient stainless‐steel pneumatic cylinders simultaneously release safety locks during descent with a simple push of a button. (NOTE: Requires min. 50 psi, 10 CFM air source at time of installation.)
• • A push‐button safety lock release system is operated away from the lift and allows operators to safely deactivate the locks without the need to push or pull cumbersome release bars or lock release handles
