  9. Drive Through Window Air Curtain, 7 In. H
Shop All Air Curtains and Accessories
Berner

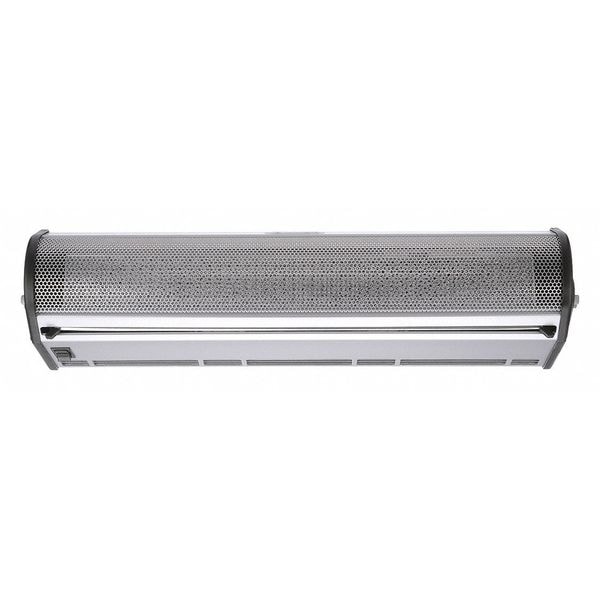

Drive Through Window Air Curtain, 7 In. H

product price: $574.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Width 25 1/4 in
  • Phase 1
  • Max. Mounting Height 3 ft
  • Air Curtain Finish Powder Coated
  • Number of Motors 2
See all product information

Product Information

Dimensions

Width 25 1/4 in
Max. Mounting Height 3 ft
Height 7 in
Air Curtain Max. Door Width 2 ft
Depth 7 3/4 in
Overall Height 7 in
Overall Width 28 1/8 in
Overall Depth 7 3/4 in
Mounting Height for Insect Control 5 ft
Nozzle Width 24 1/2 in
Mounting Height for Temperature Control 3 ft
Mounting Hole Diameter Not Available
Power Cord Length 6 ft
For Frame Opening Width 2 ft

Details

Item Unhtd 7"H 28.2"W 8"D Alumin Air Curtain
Phase 1
Air Curtain Finish Powder Coated
Number of Motors 2
Air Curtain Air Velocity 2800 fpm
Voltage 115
Air Curtain Air Volume 200 cfm
Air Curtain dBA @ 10 Feet 52 dBA
Air Curtain Heated No
Air Curtain Housing Material Aluminum
Hz 60
Motor Type Shaded Pole
Requires 20A Dedicated Circuit
Number of Speeds 1
Housing Color Silver
Motor HP 1/20 hp, 1/12 hp
Motor Enclosure Open
Max. Amps 2.2
Air Curtain Item Drive Through Window Air Curtain
Includes (3) 6 ft Prong Grounded Plug with Factory Wired Fan On Off Switch
Max. RPM 1,625 RPM
Standards cULus, UL Listed
Control Type Switch
Housing Material Aluminum
Minimum Operating Temperature Not Available
Assembly Not Available
Series DTU03
Power Consumption 0.1 kW
Maximum Air Velocity 2,800 fpm
Washdown No
Ultraviolet Air Cleaning No
Profile Type Drive Thru
Maximum Air Volume 200 cfm
For Outdoor Use Yes
Finish Powder Coated
Full Load Current 2.2 A
HEPA Air Cleaning No
Grille Material Aluminum
Nameplate Voltage 120V AC
Maximum Speed 1,625 RPM
Sanitation Certified No
Motor Horsepower per Motor 1/20 hp, 1/12 hp
Heated/Not Heated Not Heated
Frequency 60 Hz
Electrical Connection Plug-In
Sound Level @ 10 ft 52 dBA
Includes Mounting Fasteners Not Available
Maximum Operating Temperature Not Available

Description

Unhtd 7 In.H 28.2 In.W 8 In.D Alumin Air Curtain, For Frame Opening Width 2 ft, Mounting Height for Temperature Control 3 ft, Overall Depth 7 3/4 in, Overall Height 7 in, Overall Width 28 1/8 in, Profile Type Drive Thru, Heated/Not Heated Not Heated, Maximum Air Velocity 2,800 fpm, Mounting Height for Insect Control 5 ft, Maximum Air Volume 200 cfm, Nameplate Voltage 120V AC, Air Temperature Rise Not Applicable, Sound Level @ 10 ft 52 dBA, Housing Color Silver, Phase 1, Housing Material Aluminum
