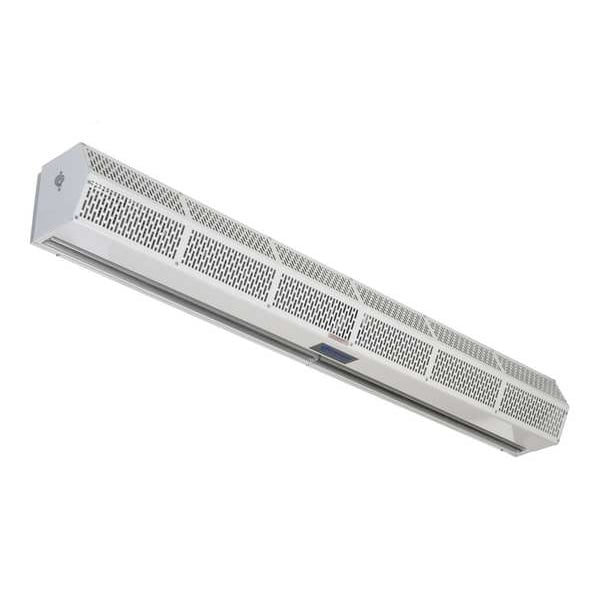

Low Profile Air Curtain, 42-7/8 In. W

BERNER| Zoro #: G1586094| Mfr #: SLC07-1042AC-G

$762.00 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1586094 Mfr #: SLC07-1042AC-G
Phase: 1Hz: 60
Includes: Door Limit Switch, Plunger Style for Automatic OperationAir Curtain Heated: No
Motor Enclosure: Totally EnclosedNumber of Motors: 1
Motor Type: Permanent Split CapacitorVoltage: 115/208 to 240
Requires: Hard WiringNumber of Speeds: 1
Housing Color: WhiteMax. Mounting Height: 7 ft.
Standards: NSF 37, EPH ANSI, NSF 37, UL Indoor, UL Outdoor and CUL IndoorHeight: 8-1/2"
Depth: 8"Air Curtain Finish: Powder Coated
Air Curtain Max. Door Width: 3 ft. 6"Air Curtain Item: Low Profile Air Curtain
Max. RPM: 1680Air Curtain Housing Material: Steel
Width: 42-7/8"Air Curtain dBA @ 10 Feet: 54
Motor HP: 1/5Air Curtain Air Volume: 1188 cfm
Max. Amps: 3.4/1.7 to 1.7Air Curtain Air Velocity: 3300 fpm
Item: Low Profile Air CurtainCountry of Origin (subject to change): United States

Product Description

Low Profile Air Curtain, Air Curtain Max. Door Width 3 ft. 6 In., Max. Mounting Height 7 ft., Air Curtain Air Volume 1188 cfm, 54 Air Curtain dBA @ 10 Feet, Width 42-7/8 In., Height 8-1/2 In., Depth 8 In., Number of Motors 1, 1 Phase, Voltage 115/208 to 240, Max. Amps 3.4/1.7 to 1.7, Air Curtain Heated No, Air Curtain Air Velocity 3300 fpm, Air Curtain Finish Powder Coated, Air Curtain Housing Material Steel, 60 Hz, Housing Color White, Motor Type Permanent Split Capacitor
