Shop BERNER

Mounitng Heights

  • Mfr # CHD10-1048AB-G

  • Zoro # G307968963

product price:  $1,584.99
/ea
Additional $220.00 delivery surcharge applies per item.
See details

Key Features

Phase
1
Number of Motors
1
Control Type
Activation Switch
Motor Type
Permanent Split Capacitor
Motor Enclosure
Open Dripproof
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
CHD10-1048AB-G
Zoro #
G307968963
UPC #
-
Country of Origin
United States

Dimensions

Overall Depth
14 1/2 in
Overall Height
14 in
Overall Width
51 in
For Frame Opening Width
4 ft
Nozzle Width
48 in
Mounting Height for Insect Control
8 ft
Mounting Height for Temperature Control
10 ft

Details

Item

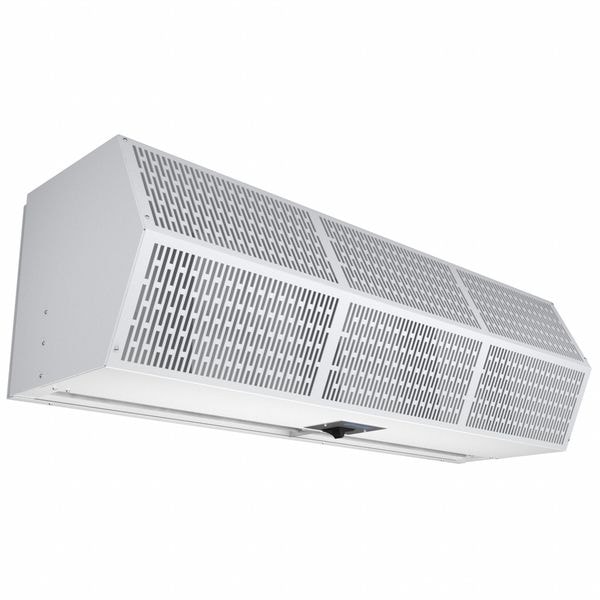

Unhtd 14"H 51"W 15"D Galv St Air Curtain
Phase
1
Number of Motors
1
Control Type
Activation Switch
Motor Type
Permanent Split Capacitor
Motor Enclosure
Open Dripproof
Finish
Powder Coated
Number of Speeds
3
Standards
cULus
Includes
24V Magnetic Reed Door Limit Swtich, 24V Transformer, Adjustable Time Delay, Factory Mounted Wired Fan Speed Switch
Housing Color
White
Housing Material
Aluminum
Profile Type
Standard Profile
Sound Level @ 10 ft
66 dBA
Washdown
No
Ultraviolet Air Cleaning
No
Sanitation Certified
No
Heated/Not Heated
Not Heated
Series
CHD10
Nameplate Voltage
208V AC
Motor Horsepower per Motor
1/2 hp
Power Consumption
0.75 kW
Maximum Air Velocity
1,515 fpm
HEPA Air Cleaning
No
Full Load Current
3.5 A
Grille Material
Aluminum
Maximum Air Volume
1,768 cfm
Heat Source
Electric
Frequency
60 Hz
For Outdoor Use
No
Assembly
Unassembled
Maximum Speed
1,680 RPM
Electrical Connection
Hardwired
Drive Type
Direct Drive

Description

Unhtd 14 In.H 51 In.W 15 In.D Galv St Air Curtain, For Frame Opening Width 4 ft, Mounting Height for Temperature Control 10 ft, Overall Depth 14 1/2 in, Overall Height 14 in, Overall Width 51 in, Profile Type Standard Profile, Heated/Not Heated Not Heated, Maximum Air Velocity 1,515 fpm, Mounting Height for Insect Control 8 ft, Maximum Air Volume 1,768 cfm, Nameplate Voltage 208V AC, Air Temperature Rise Not Applicable, Sound Level @ 10 ft 66 dBA, Housing Color White, Phase 1
