  11. 36 in Bar Clamp, Plastic, Steel Handle and 5 1/2 in Throat Depth

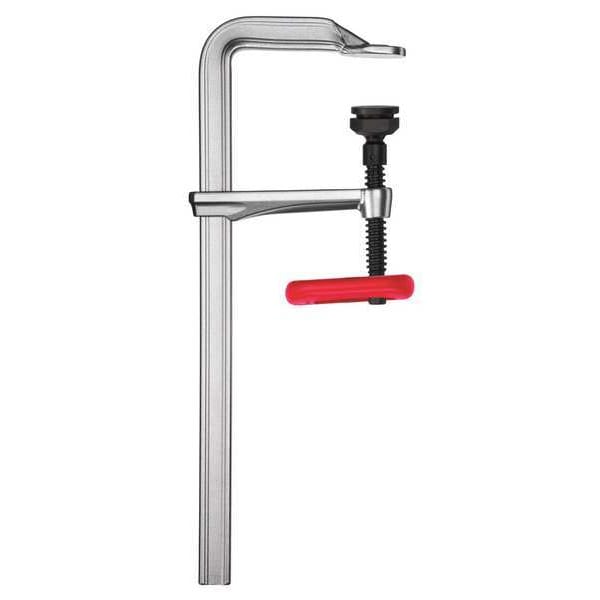

Bessey 36 in Bar Clamp, Plastic, Steel Handle and 5 1/2 in Throat Depth 2400S-36 - main

36 in Bar Clamp, Plastic, Steel Handle and 5 1/2 in Throat Depth

  • Mfr # 2400S-36

  • Zoro # G5018237

product price: $236.99
/ea
Free Shipping & Returns

Key Features

Type
Regular Duty, S Series
Handle Material
Plastic, Steel
Throat Depth (In.)
5 1/2 in
Includes
Patented Rail Profile, MorPad, ergonomic Bessy(R) Grip
Opening (In.)
36 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2400S-36
Zoro #
G5018237
UPC #
788502008099
Country of Origin
Germany

Dimensions

Throat Depth (In.)
5 1/2 in
Bar Size (In.)
7/16 in
Width
1-1/4"
Bar Thickness (In.)
1 11/32 in
Bar Width (In.)
33/64 in
Nominal Rail Size (In.)
1-11/32 x 1/2
Width (In.)
1 1/4 in
Handle Length (In.)
5 in
Screw Size (In.)
3/4
Spindle Dia. (In.)
3/4
Throat Depth
5 1/2 in
Handle Length
5 in
Bar Thickness
1 3/8 in
Spindle Diameter1
3/4 in
Overall Width3
1 1/4 in
Bar Width
9/16 in
Jaw Pad Width
1 1/2 in
Throat Depth1
5 1/2 in

Details

Item
Bar Clamp
Type
Regular Duty, S Series
Handle Material
Plastic, Steel
Max. Jaw Opening (In.)
36 in
Includes
Patented Rail Profile, MorPad, ergonomic Bessy(R) Grip
Opening (In.)
36 in
Nominal Clamping Pressure
2,800 lb
Clamping Surface D (In.)
1 1/2 in
Clamp Face (In.)
2-1/2 x 1-1/4
Bar Material
Steel
Application
Industrial
Swivel Pad (In.)
1-1/2
Swivel Type
Removable
Pad Type
Swivel Morpad, Tilts 35 Degrees
Clamping Surface W (In.)
2 in
Load Capacity (Lb.)
2,800 lb
Function
Clamp
Spindle Finish1
Spatter-Resistant
Clamping Force1
2,800 lb
Spindle Material1
High Carbon
Clamping Capacity1
36 in
Handle Style
Sliding T
Sliding Mechanism
Bar Slide
Bar Type
Patented Rail
Jaw Pad Type
Swivel
Clamping Force
2,800 lb

Description

The BESSEY - 2400S-36 falls under the "Bar Clamps" category. This robust clamping tool is primarily used in assembly, woodworking, gluing, welding, and metalworking processes. It features a rigid steel bar that houses a fixed head on one end and an adjustable sliding head on the other. Its clamping force of up to 2,800 lb ensures that your workpiece stays securely in place during fastening or machining tasks.

Key Features of the BESSEY - 2400S-36 Bar Clamp:

  • Bar material: steel.
  • Bar dimensions: thickness 1 11/32 in; width 33/64 in.
  • Jaw opening: 36 in.
  • Clamping force: 2,800 lb.
  • T-handle: 5 in; material: plastic and steel.
  • Jaw pads: swivel; tilt up to 35 degrees.
  • Swivel feature: removable.
  • Inclusions: rail profile, MorPad, and ergonomic Bessy Grip.
  • Applications: assembly, woodworking, gluing, welding, metalworking.
