  6. 4 in Bar Clamp, Tempered Drop-Forged Steel Handle and 3 1/8 in Throat Depth

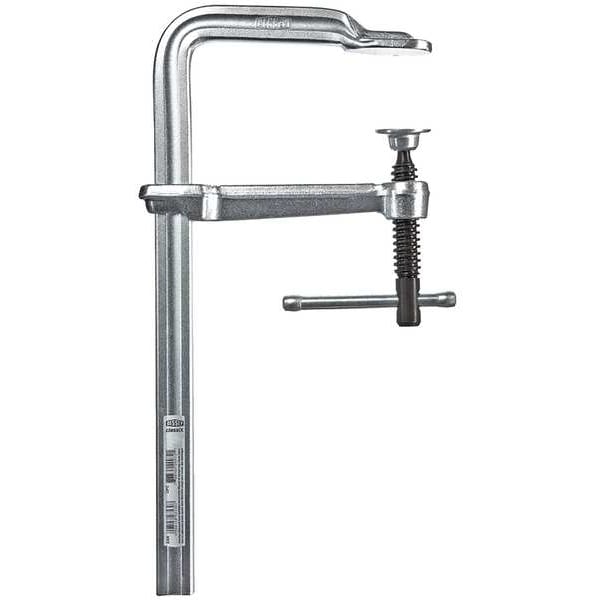

Bessey 4 in Bar Clamp, Tempered Drop-Forged Steel Handle and 3 1/8 in Throat Depth GS12-8K - main

4 in Bar Clamp, Tempered Drop-Forged Steel Handle and 3 1/8 in Throat Depth

  • Mfr # GS12-8K

  • Zoro # G4407234

product price:  $20.59
/ea

Key Features

Type
ClassiX(R) - Standard Pad
Handle Material
Tempered Drop-Forged Steel
Throat Depth (In.)
3 1/8 in
Bar Material
Steel
Bar Size (In.)
9/32 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GS12-8K
Zoro #
G4407234
UPC #
788502200905
Country of Origin
Germany

Dimensions

Throat Depth (In.)
3 1/8 in
Bar Size (In.)
9/32 in
Nominal Rail Size (In.)
5/8 x 19/64
Bar Width (In.)
19/64 in
Spindle Dia. (In.)
0.55
Screw Size (In.)
0.55
Bar Thickness (In.)
5/8 in
Handle Length (In.)
3 5/32 in
Throat Depth
3 1/8 in
Bar Thickness
5/8 in
Throat Depth1
3 1/8 in
Jaw Pad Width
1 in
Spindle Diameter1
9/16 in
Bar Width
5/16 in
Handle Length
3 3/16 in

Details

Item
Bar Clamp
Type
ClassiX(R) - Standard Pad
Handle Material
Tempered Drop-Forged Steel
Max. Jaw Opening (In.)
4 in
Bar Material
Steel
Swivel Type
Non-Replaceable
Clamping Surface D (In.)
3/4 in
Swivel Pad (In.)
1
Clamp Face (In.)
3/4 x 1-1/4
Application
Industrial
Nominal Clamping Pressure
550
Load Capacity (Lb.)
550 lb
Opening (In.)
4 in
Pad Type
Standard, Swivel
Clamping Surface W (In.)
1 1/4 in
Function
Clamp
Jaw Pad Type
Swivel
Clamping Capacity1
4 in
Sliding Mechanism
Bar Slide
Spindle Finish1
Spatter-Resistant
Bar Type
Profiled Rail
Handle Style
Sliding T
Clamping Force1
550 lb
Spindle Material1
High Carbon
Clamping Force
550 lb

Description

The BESSEY - GS12-8K is a bar clamp, constructed with a rigid steel bar and fixed and sliding heads that lock to apply pressure. It is intended for use in assembly, woodworking, gluing, metalworking, etc. The Bar Clamp operates with a profiled rail bar type.

Key Features of the BESSEY - GS12-8K Bar Clamp include:

  • Bar Specifications: The clamp's bar is made of steel with dimensions of 9/32 in, 5/8 in, and a width of 5/16 in.
  • Clamping Capacity: It has a clamping capacity of 4 in with a maximum clamping force of 550 lb.
  • Handle Specifications: The clamp is equipped with a sliding T-handle design, made from tempered drop-forged steel. The handle length is 3 3/16 in.
  • Jaw Pad Type: The clamp uses a swivel jaw pad, perfect for contact on non-flat surfaces.
  • Sliding Mechanism: The Bar Clamp utilizes a Bar Slide mechanism enabling movement of the sliding jaw along the bar.
  • Swivel Type: The swivel mechanism is non-replaceable.
  • Load Capacity: The Bar Clamp has a maximum load of 550 lb.
