Shop BESSEY

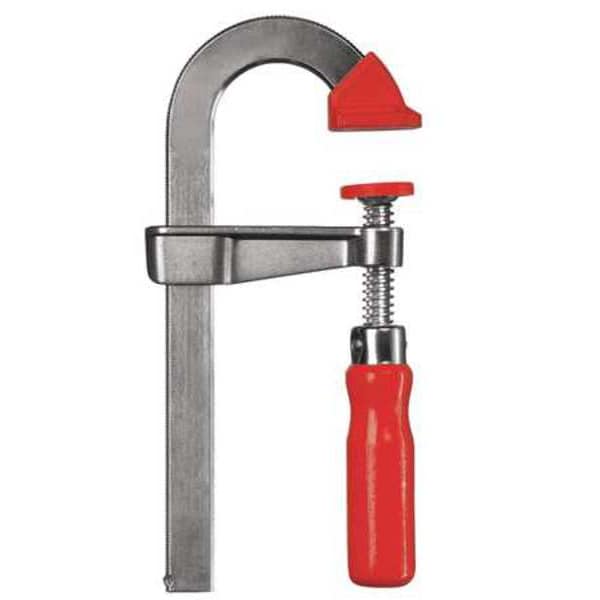

4 in Bar Clamp, Wood Handle and 2 in Throat Depth

  • Mfr # LMU2.004

  • Zoro # G4406744

product price:  $9.49
/ea

Key Features

Type
Light Duty, Step Over
Handle Material
Wood
Throat Depth (In.)
2 in
Includes
Removable Plastic Jaw Caps
Clamping Surface D (In.)
11/16 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LMU2.004
Zoro #
G4406744
UPC #
091162013243
Country of Origin
China

Dimensions

Throat Depth (In.)
2 in
Spindle Dia. (In.)
0.395
Bar Width (In.)
3/16 in
Bar Thickness (In.)
19/32 in
Nominal Rail Size (In.)
19/32 x 3/16
Screw Size (In.)
0.395
Handle Length (In.)
3 in
Bar Size (In.)
3/4 in
Throat Depth
2 in
Handle Length
3 in
Jaw Pad Width
7/8 in
Throat Depth1
2 in
Bar Thickness
5/8 in
Spindle Diameter1
7/16 in
Bar Width
3/16 in

Details

Item
Bar Clamp
Type
Light Duty, Step Over
Handle Material
Wood
Max. Jaw Opening (In.)
4 in
Includes
Removable Plastic Jaw Caps
Clamping Surface D (In.)
11/16 in
Opening (In.)
4 in
Clamp Face (In.)
11/16 x 1-1/8
Swivel Type
Replaceable
Pad Type
Non-Marring, Swivel on Anvil Surface
Load Capacity (Lb.)
330 lb
Clamping Surface W (In.)
1 1/8 in
Nominal Clamping Pressure
330
Bar Material
Zinc Die Cast
Application
Woodworking
Swivel Pad (In.)
7/8
Bar Type
U-Style
Clamping Capacity1
4 in
Jaw Pad Type
Non-Marring, Swivel
Clamping Force1
330 lb
Sliding Mechanism
Bar Slide
Clamping Force
330 lb

Description

If you are looking for a versatile tool that can be used in a variety of applications, the Bessey LMU2.004 4 in Bar Clamp is an excellent choice. It has a wooden handle and swivel on anvil surface pad, making it comfortable to use. The bar clamp has a zinc die cast construction for durability. The non-marring pad ensures that the clamp does not leave any marks on your work piece. It also features a light duty step over design and can be used with 19/32 x 3/16 nominal rail size material. With an 11/16 x 1-1/8 inch opening and 1 1/8" throat depth, this bar clamp has a maximum jaw opening of 4 inches and can accommodate wood up to 2 inches thick. For its quality and versatility, the Bessey LMU2.004 4 in Bar Clamp is worth purchasing.
