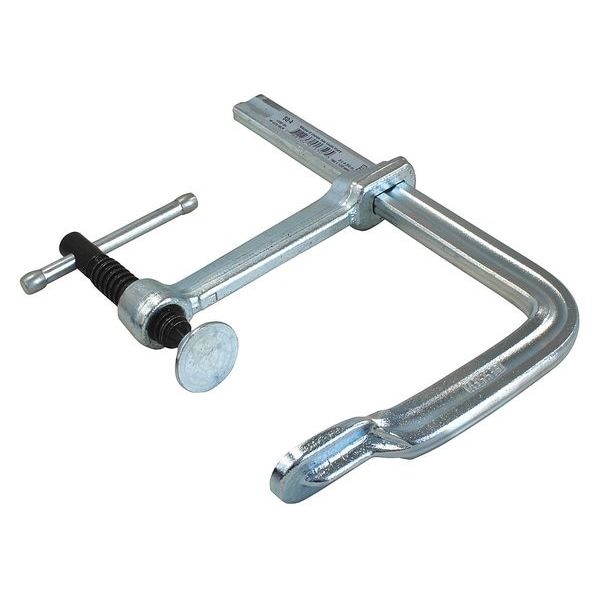

6 in Bar Clamp, Steel Handle and 4 3/4 in Throat Depth

  • Mfr # SQ-4

  • Zoro # G9991737

product price:
$
61.59
/ea

Key Features

Type
Medium Duty S Series
Handle Material
Steel
Throat Depth (In.)
4 3/4 in
Max. Jaw Opening (In.)
6 in
Includes
Standard Rail Profile, Standard Pad
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SQ-4
Zoro #
G9991737
UPC #
788502013505
Country of Origin
Germany

Dimensions

Throat Depth (In.)
4 3/4 in
Bar Thickness (In.)
13/32 in
Width
6-9/16"
Nominal Rail Size (In.)
55/64 x 13/32
Screw Size (In.)
13/32
Bar Size (In.)
55/64 in
Handle Length (In.)
4 5/8 in
Width (In.)
6 9/16 in
Spindle Dia. (In.)
5/8
Bar Width (In.)
55/64 in
Throat Depth
4 3/4 in
Bar Thickness
7/16 in
Spindle Diameter1
5/8 in
Handle Length
4 5/8 in
Overall Width3
6 9/16 in
Bar Width
7/8 in
Jaw Pad Width
1 1/2 in
Throat Depth1
4 3/4 in

Details

Item
Bar Clamp
Type
Medium Duty S Series
Handle Material
Steel
Max. Jaw Opening (In.)
6 in
Includes
Standard Rail Profile, Standard Pad
Nominal Clamping Pressure
1,330
Opening (In.)
6 in
Bar Material
Steel
Pad Type
Smooth
Clamping Surface W (In.)
1 1/2 in
Clamp Face (In.)
3/4
Swivel Type
Standard
Application
Industrial
Swivel Pad (In.)
1-1/2
Clamping Surface D (In.)
3/4 in
Sliding Mechanism
Bar Slide
Clamping Force1
2,660 lb
Clamping Capacity1
6 in
Jaw Pad Type
Standard
Clamping Force
2,660 lb

Description

The BESSEY - SQ-4 Bar Clamp is a practical industrial clamping tool. Designed to apply pressure uniformly across a workpiece during various applications such as assembly, woodworking, gluing, and metalworking, this bar clamp is equipped with a durable steel bar. It features a fixed head at one end and an adjustable sliding head at the other, utilizing a Bar Slide mechanism for easy adjustment of its clamping capacity.

Key Features of the BESSEY - SQ-4 Bar Clamp:

  • Application: This bar clamp is intended for industrial use in situations such as assembly, woodworking, gluing, and metalworking.
  • Frame Material: The rigid steel bar aims to provide consistent clamping performance.
  • Clamping Force: Rated for a maximum axial clamping force of 2,660 lb when fully tightened, conditions permitting.
  • Dimensions: With a bar size of 55/64 in, bar thickness of 13/32 in, and a max jaw opening of 6 in, this clamp offers a versatile size to accommodate several workpiece dimensions.
  • Handle: A steel handle of length 4 5/8 in is incorporated for potential comfortable grip and operation, varying on individual usage.
  • Includes: The package includes a standard rail profile and a standard pad to aid in assembly and clamping tasks.
  • Jaw Pad: A standard jaw pad with a width of 1 1/2 in is intended for reducing workpiece marring during the clamping process, results may vary.
