  11. 6 in Bar Clamp, Wood Handle and 2 1/2 in Throat Depth
Bessey 6 in Bar Clamp, Wood Handle and 2 1/2 in Throat Depth GSCC2.506 - main

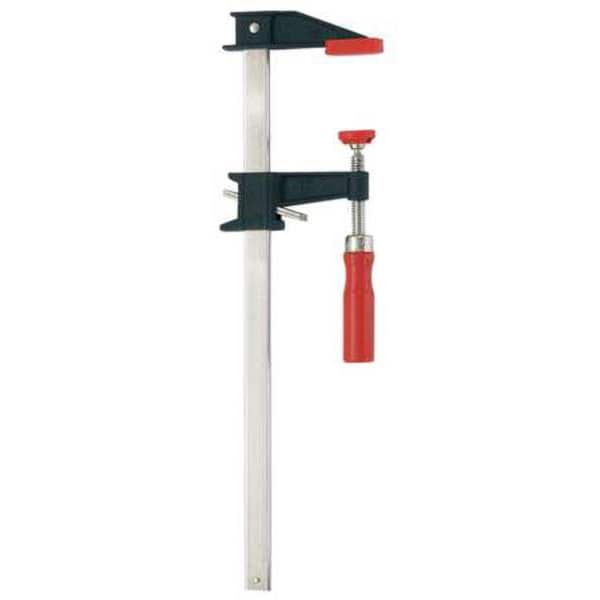

6 in Bar Clamp, Wood Handle and 2 1/2 in Throat Depth

  • Mfr # GSCC2.506

  • Zoro # G4407821

product price: $11.79
/ea

Key Features

Type
Clutch Style
Handle Material
Wood
Throat Depth (In.)
2 1/2 in
Includes
Removable Plastic Jaw Caps
Application
Assembly, Construction, General Purpose Clamping, Gluing, Maintenance
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GSCC2.506
Zoro #
G4407821
UPC #
091162009598
Country of Origin
China

Dimensions

Throat Depth (In.)
2 1/2 in
Bar Width (In.)
1/4 in
Bar Thickness (In.)
3/4 in
Bar Size (In.)
13/16 in
Spindle Dia. (In.)
0.40
Handle Length (In.)
3 1/2 in
Nominal Rail Size (In.)
3/4 x 1/4
Screw Size (In.)
0.4
Throat Depth
2 1/2 in
Handle Length
3 1/2 in
Bar Width
1/4 in
Jaw Pad Width
1 in
Spindle Diameter1
7/16 in
Throat Depth1
2 1/2 in
Bar Thickness
3/4 in

Details

Item
Bar Clamp
Type
Clutch Style
Handle Material
Wood
Max. Jaw Opening (In.)
6 in
Includes
Removable Plastic Jaw Caps
Application
Assembly, Construction, General Purpose Clamping, Gluing, Maintenance
Clamping Surface D (In.)
1 1/8 in
Nominal Clamping Pressure
600
Pad Type
Non-Marring, Swivel on Anvil Surface
Load Capacity (Lb.)
600 lb
Opening (In.)
6 in
Swivel Type
Replaceable
Bar Material
Nickel-Plated Drawn Steel
Swivel Pad (In.)
1
Clamp Face (In.)
1-1/8 x 1-5/8
Clamping Surface W (In.)
1 5/8 in
Function
Clamp
Handle Style
Screwdriver
Bar Type
Serrated Rail
Clamping Capacity1
6 in
Jaw Pad Type
Swivel
Clamping Force1
600 lb
Sliding Mechanism
Clutch
Spindle Finish1
Powder Coated
Clamping Force
600 lb

Description

The BESSEY - GSCC2.506 belongs to the category of Bar Clamps, a type of clamping tool that consists of a long rigid bar with a fixed head at one end and an adjustable sliding head at the other end. Equipped with a screw mechanism, this clamp is designed to apply pressure across a workpiece. It is suitable for a range of applications including assembly, construction, general purpose clamping, gluing, and maintenance.

Key Features of the BESSEY - GSCC2.506 Bar Clamp:

  • Bar Material: Nickel-Plated Drawn Steel
  • Handle Material and Style: The handle is made of wood with a screwdriver-style design.
  • Bar Type and Size: Serrated rail type; Bar length: 13/16 in; Bar thickness: 3/4 in
  • Clamping Capacity and Force: Its clamping capacity stands at 6 in, capable of exerting a maximum axial clamping force of 600 lb when fully tightened.
  • Swivel Pad Type: The clamp includes swivel pads on the anvil surface.
  • Includes: The clamp comes with removable plastic jaw caps.
  • Sliding Mechanism: The clamp provides adjustability with its clutch sliding mechanism.
