  11. Auto-Adjust Toggle Clamp, 700 lb. Cap.
Shop All Toggle & Latch Clamps
Bessey

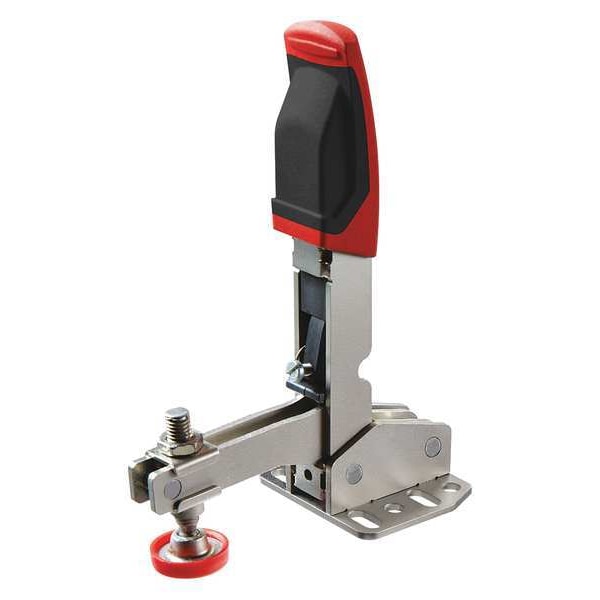

Auto-Adjust Toggle Clamp, 700 lb. Cap.

product price: $27.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Vertical with Open Arm and Horizontal Base Plate
  • Holding Capacity (Lb.) 700
  • Overall Height (In.) 6.38 in
  • Overall Length (In.) 4.57 in
  • Spindle Material Steel
See all product information

Product Information

Dimensions

Overall Height (In.) 6.38 in
Overall Length (In.) 4.57 in
Height Under Arm (In.) 1 in
Dia. (In.) 0.25 in
Thread Size M8
Height Under Arm 0.88 in
Overall Length 4.57 in
Fastener Thread Size M8
Spindle Thread Size M8
Overall Depth 6.38 in
Arm Length 2.48 in

Details

Item Auto-Adjust Toggle Clamp
Type Vertical with Open Arm and Horizontal Base Plate
Holding Capacity (Lb.) 700
Spindle Material Steel
Handle 2-Component Plastic
Spindle Nickel Plated Steel
Includes Removable Plastic Pressure Pad Cover
Arm Nickel Plated Steel
Base Mounting Centers (In.) 1.00 x 1.57
Adjustable Range 25 to 550 lb Clamping Force
Includes Locking Handle No
Clamping Force 250 lb
Accommodates Workpiece Variation Yes
Mounting Holes Center to Center - Long Side 1.57 in
Base Mounting Style Flange
Tip Material Polyethylene
Handle Orientation Vertical
Handle Material Plastic
Clamp Arm Opening Angle 180 Degrees
Mounting Holes Center to Center - Short Side 1 in
Arm Style U-Bar
Holding Capacity - Maximum 700 lbf

Description

Auto-Adjust Toggle Clamp, Base Mounting Style Flange, Handle Orientation Vertical, Holding Capacity - Maximum 700 lbf, Arm Style U-Bar, Tip Material Polyethylene, Clamp Arm Opening Angle 180 Degrees , Arm Length 2.48 in, Height Under Arm 0.88 in, Includes Locking Handle No, Accommodates Workpiece Variation Yes, Clamping Force 250 lb, Fastener Thread Size M8, Handle Material Plastic, Includes Removable Plastic Pressure Pad Cover, Mounting Holes Center to Center - Long Side 1.57 in
