  13. Lever Lockset, Mechanical, Classroom, Grd.1

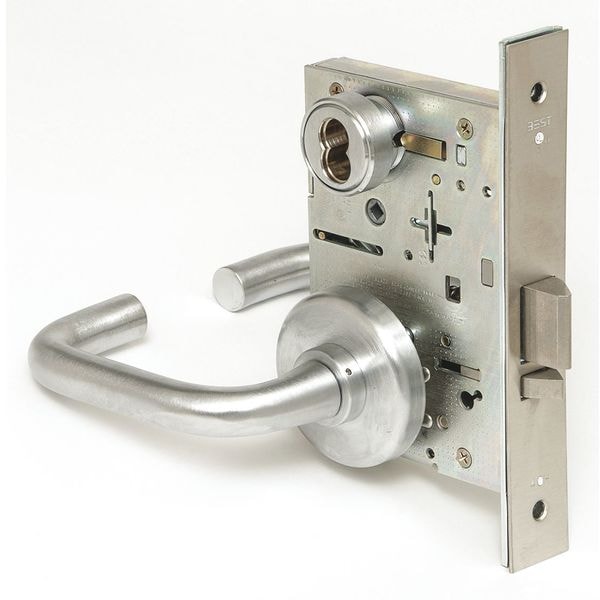

Best Lever Lockset, Mechanical, Classroom, Grd.1 45H7R3H626 - main

Lever Lockset, Mechanical, Classroom, Grd.1

  • Mfr # 45H7R3H626

  • Zoro # G0396116

product price: $834.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Mortise
Lockset Function
Classroom
Lockset Grade
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
45H7R3H626
Zoro #
G0396116
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in
Door Thickness - Minimum
1 3/4 in
Door Thickness - Maximum
5 in
Strike Plate Width
1/8 in
Strike Plate Thickness
1 1/4 in
Strike Plate Height
4 7/8 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Mortise
Lockset Function
Classroom
Lockset Grade
1
Style
40H Rose
Lockset Finish
Satin Chrome
Keyway Type
None
Key Type
Not Keyed
ADA Compliant
Yes
Location Type
Commercial
Features
Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation
Mortise/Cylindrical
Mortise
Strike Dim.
4-7/8 in x 1-1/4 in x 3/32 in
Standards
ANSI A117.1, ANSI A156.13, BHMA, cULus Listed
Item
Door Lockset
Includes
Hardware
Series
40H Series
Backset
2 3/4 in
For Use With
Hollow Metal and Wood Doors
Strike Type
ANSI
Ligature Resistant
No
Lockset Fire Rating
3 hr
Number of Keys
0
Fire Rated
3 hr.
Grade
1
Pins
0
Case Material
Steel, Zinc
Function
Classroom
Handle Type
Solid Tube/Return
Number of Pins
7
Finish
Satin Chrome
Visual Indicator Message
No Message
Cylinder Core Type
Interchangeable Core Cylinder
Hand Orientation
Non-Handed
Application
Commercial, Industrial
ANSI Grade
1
Lockset Type
Mechanical
Includes Hardware
Hardware Included
Fire Rating
3 hr
Lockset Style
40H Rose
Locking/Unlocking Access - Outside
Keyway
ANSI/BHMA Finish
Satin Chromium-Plated
Knob/Handle Material
Brass, Bronze, Stainless Steel
Ligature-Resistant
Not Ligature-Resistant
Latch Bolt/Dead Bolt
Latch Bolt
Performance Grade
1
Lockset Function ANSI Code
F05

Description

Lever Lockset,Mechanical,Classroom,Grd.1
