  13. Lever Lockset, Mechanical, Intruder, Grd. 2

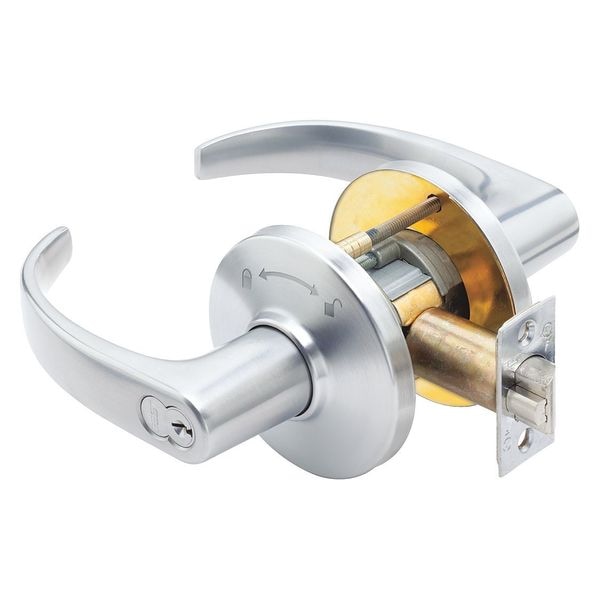

Best Lever Lockset, Mechanical, Intruder, Grd. 2 9K37IN14DS3626 - main

Lever Lockset, Mechanical, Intruder, Grd. 2

  • Mfr # 9K37IN14DS3626

  • Zoro # G1608656

product price: $661.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Passage
Lockset Grade
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9K37IN14DS3626
Zoro #
G1608656
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in to 2-1/4 in
Door Thickness - Maximum
2 1/4 in
Door Thickness - Minimum
1 3/4 in
Strike Plate Height
4 7/8 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Passage
Lockset Grade
1
Style
9K Curved
Lockset Finish
Satin Chrome
Keyway Type
Best SFIC
Key Type
Standard
Item
Door Lockset
Cylinder Core Type
Large Format Interchangeable Core Cylinder
Series
9K
Strike Type
Curved Lip
Mortise/Cylindrical
Cylindrical
Key Material
Nickel Silver
Strike Dim.
2-3/4 in x 1-1/8 in
Number of Keys
2
ADA Compliant
Yes
Backset
2 3/4 in
Handle Material
Zinc
Location Type
Commercial
Includes
Cylindrical Lock, Installation Hardware
Standards
ANSI A117.1, BHMA, cULus Listed
Lockset Performance Strength
Heavy Duty
Number of Pins
7
Ligature Resistant
No
Features
Hardened Steel Through-Bolt Studs
For Use With
Swinging Doors
Lockset Fire Rating
3 hr
Finish
Satin Chrome
Grade
1
Fire Rated
Yes
Keying
Not Keyed
Visual Indicator Message
No Message
ANSI/BHMA Finish
Satin Chromium-Plated
Ligature-Resistant
Not Ligature-Resistant
Hand Orientation
Non-Handed
Latch Bolt/Dead Bolt
Latch Bolt
Lockset Type
Mechanical
ANSI Grade
1
Locking/Unlocking Access - Outside
Not Lockable
Includes Hardware
Hardware Included
Lockset Function ANSI Code
F11
Locking/Unlocking Access - Inside
Not Lockable
Fire Rating
3 hr
Performance Grade
1
Lockset Style
9K Curved Return Lever
Application
Commercial
Knob/Handle Material
Zinc

Description

Mechanical, Lever, Cylindrical, Lockset Function Intruder, Lockset Grade 2, Style 7K Curved, Lockset Finish Satin Chrome, Keyway Type None, Key Type Not Keyed, Standards ANSI, ADA Compliant No, Lockset Fire Rating 3 hr., Backset 2-3/4 In., Ligature Resistant No, Cylinder Core Type Interchangeable Core, Features Versatile Trims, Cylindrical Chassis, Through-Bolt Mounting Studs, No Exposed Keeper Hole, Internal Steel Mechanism, For Use With Swinging Doors, Handle Material Zinc
