  13. Lever Lockset, Mechanical, Passage, Grd. 1

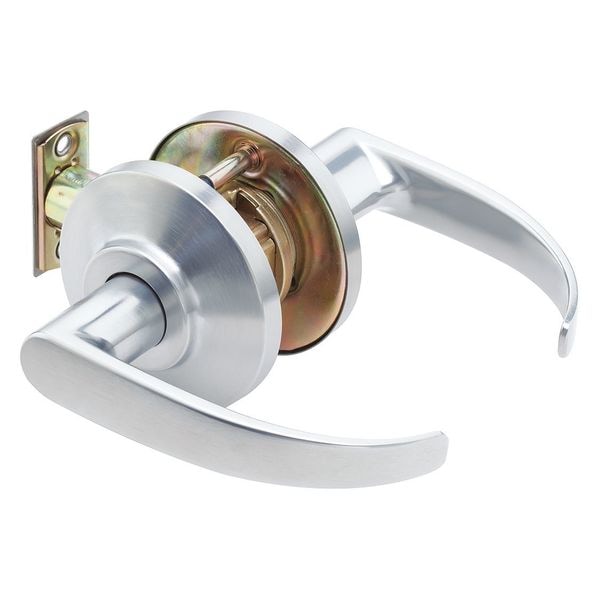

Best Lever Lockset, Mechanical, Passage, Grd. 1 7KC30N14DS3626 - main

Lever Lockset, Mechanical, Passage, Grd. 1

  • Mfr # 7KC30N14DS3626

  • Zoro # G1608227

product price: $205.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Swinging Doors
Includes
Cylindrical Lock, Installation Hardware
Key Type
Not Keyed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7KC30N14DS3626
Zoro #
G1608227
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Required Door Thickness
1-3/8 in to 2 in
Door Thickness - Maximum
2 in
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/8 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Swinging Doors
Includes
Cylindrical Lock, Installation Hardware
Key Type
Not Keyed
Keyway Type
None
Location Type
Commercial
Lockset Function
Passage
Lockset Grade
2
Lockset Handle Type
Lever
Mortise/Cylindrical
Cylindrical
Number of Pins
0
Series
7KC
Style
7KC Angled
Finish
Satin Chrome
Strike Dim.
2-3/4 in x 1-1/8 in
Item
Door Lockset
Lockset Fire Rating
3 hr
Lockset Finish
Satin Chrome
ADA Compliant
Yes
Cylinder Core Type
Interchangeable Core Cylinder
Features
Heavy Rose Liner Material, Innovative Design, New Zinc Hubs, Strong Retractor Spring, Strong Through-Bolt Mounting Studs, Versatile Applications
Ligature Resistant
No
Mortise / Cylindrical
Cylindrical
Strike Type
Curved Lip
Handle Material
Zinc
Standards
ANSI A117.1, BHMA A156.2, cULus Listed
Number of Keys
0
Lockset Performance Strength
Medium Duty
Fire Rated
3 hr.
Grade
1
Application
Commercial
Keying
Not Keyed
Visual Indicator Message
No Message
Locking/Unlocking Access - Outside
Not Lockable
ANSI/BHMA Finish
Satin Chromium-Plated
Performance Grade
2
Ligature-Resistant
Not Ligature-Resistant
Fire Rating
3 hr
Latch Bolt/Dead Bolt
Dead Bolt
Includes Hardware
Hardware Included
Lockset Function ANSI Code
F75
Hand Orientation
Non-Handed
ANSI Grade
2
Locking/Unlocking Access - Inside
Not Lockable
Lockset Type
Mechanical
Knob/Handle Material
Zinc
Lockset Style
7KC Curved Return Lever

Description

Lever Lockset,Mechanical,Passage,Grd. 1
