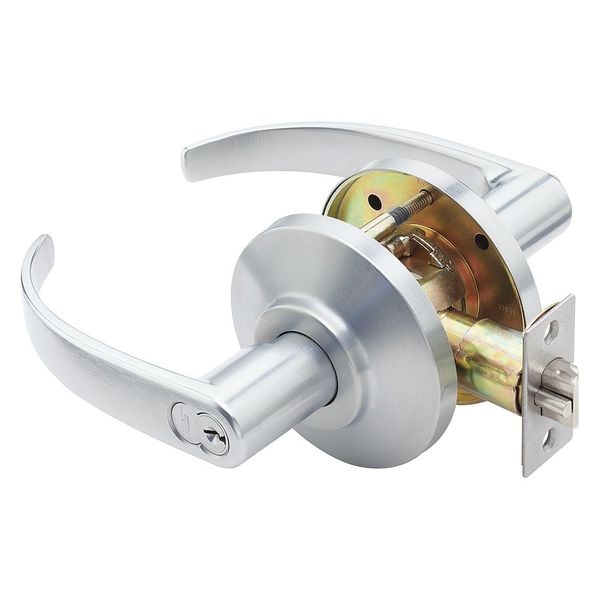

Best Lever Lockset, Mechanical, Storeroom 7KC37D14DS3626 - main

Lever Lockset, Mechanical, Storeroom

  • Mfr # 7KC37D14DS3626

  • Zoro # G6227584

product price: $290.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Storeroom
Lockset Grade
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7KC37D14DS3626
Zoro #
G6227584
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Required Door Thickness
1-3/8 in to 2 in
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/8 in
Door Thickness - Maximum
2 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Storeroom
Lockset Grade
2
Style
7KC Curved Return Lever
Lockset Finish
Satin Chrome
Keyway Type
None
Key Type
Not Keyed
Item
Door Lockset
Strike Dim.
4-7/8 in x 1-1/4 in
Ligature Resistant
No
Number of Pins
7
Mortise/Cylindrical
Cylindrical
Lockset Fire Rating
3 hr
Features
Cylindrical Chassis to Fit Common Door Preparation, Hub Torque Spring Provides Extra Resistance to Lever Sag and Smooth, Pre-Assembled Hub Simplifies and Saves Installation Time, Quick Rekeying with Best Interchangeable Core, Snappy Operation, Through-Bolt Mounting Studs Increase Torque Resistance
Series
7KC
ADA Compliant
Yes
Number of Keys
0
Handle Material
Plated Zinc
For Use With
Swinging Doors
Backset
2 3/4 in
Lockset Performance Strength
Light Duty
Standards
ANSI A117.1, BHMA A156.2, cULus Listed
Strike Type
Curved Lip
Location Type
Commercial
Includes
Door Prep Template
Cylinder Core Type
Interchangeable Core Cylinder
Finish
Satin Chrome
Grade
1
Keying
Unkeyed
Fire Rated
3 hr.
Visual Indicator Message
No Message
Function
Storeroom
Cylinder
7-Pin Housing, Less Core
Locking/Unlocking Access - Outside
Keyway
Fire Rating
3 hr
ANSI Grade
2
Ligature-Resistant
Not Ligature-Resistant
Application
Commercial
ANSI/BHMA Finish
Satin Chromium-Plated
Knob/Handle Material
Zinc
Latch Bolt/Dead Bolt
Dead Bolt
Lockset Function ANSI Code
F86
Performance Grade
2
Hand Orientation
Non-Handed
Lockset Style
7KC Curved Return Lever
Lockset Type
Mechanical

Description

Light Duty Lever Lockset, Style Curved Return Lever, Function Storeroom, Handle Material Plated Zinc, Satin Chrome Finish, Strike Type Square Corner, Curved Lip, and Box, Strike Dim. 4-7/8 In. x 1-1/4 In., Fire Rated 3 hr., Grade 2, Series 7K, Location Type Commercial, Backset 2-3/4 In., Cylinder 7-Pin Housing, Less Core, Required Door Thickness 1-3/8 In. to 2 In., For Use With Swinging Doors
