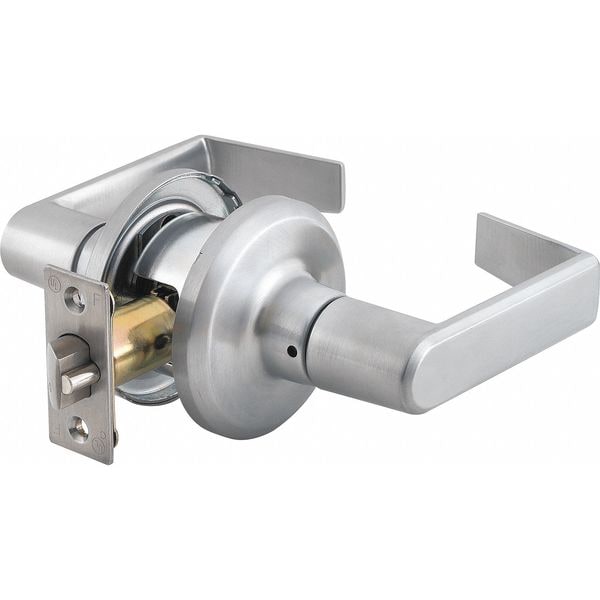

Best Lockset, Mechanical, Cylindrical, Passage QTL230E626SA478S - main

Lockset, Mechanical, Cylindrical, Passage

  • Mfr # QTL230E626SA478S

  • Zoro # G5192201

product price: $80.49
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Metal or Wood Doors
Includes
Mounting Hardware
Key Type
Not Keyed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QTL230E626SA478S
Zoro #
G5192201
UPC #
887838057266
Country of Origin
Taiwan, Province of China

Dimensions

Required Door Thickness
1-3/8 in to 1-3/4 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Height
57 mm
Door Thickness - Maximum
1 3/4 in
Strike Plate Width
44 3/8 mm

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Metal or Wood Doors
Includes
Mounting Hardware
Key Type
Not Keyed
Keyway Type
Less Cylinder
Location Type
Commercial, Educational, Healthcare, Industrial, Institutional
Lockset Function
Passage
Lockset Grade
2
Lockset Handle Type
Lever
Mortise/Cylindrical
Cylindrical
Number of Pins
6
Series
QTL200
Style
Sierra
Lockset Finish
Satin Chrome
Item
Door Lockset
Ligature Resistant
No
Strike Dim.
4-7/8 in x 1-1/4 in
Strike Type
Full Lip
Handle Material
Zinc
Mortise / Cylindrical
Cylindrical
Standards
ANSI A117.1, ANSI/BHMA, UL and cUL Listed
Lockset Performance Strength
Standard Duty
Number of Keys
0
Lockset Fire Rating
3 hr
Features
Anti Lockout, Heavy Duty Torsion Spring, Square Latch, Tubular
ADA Compliant
Yes
Fire Rating - Door Hardware
3 hr
Application
Commercial
Visual Indicator Message
No Message
Fire Rating
3 hr
Locking/Unlocking Access - Outside
Not Lockable
Latch Bolt/Dead Bolt
Latch Bolt
Lockset Function ANSI Code
F75
ANSI Grade
2
ANSI/BHMA Finish
Satin Chromium-Plated
Locking/Unlocking Access - Inside
Not Lockable
Includes Hardware
Hardware Included
Lockset Type
Mechanical
Ligature-Resistant
Not Ligature-Resistant
Hand Orientation
Non-Handed
Lockset Style
Sierra
UL Fire Rating
UL10C
Includes Core
Core Not Included
Knob/Handle Material
Zinc
Performance Grade
2

Description

Lockset,Mechanical,Cylindrical,Passage
