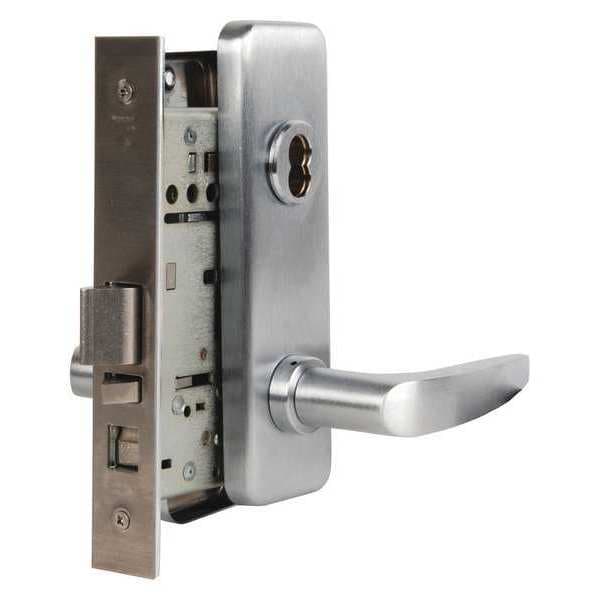

Best Mortise Lockset 40H Escutcheon, Series 40H, Grd. 1, Entrance 45H7A16J626 - main
Shop BEST

Mortise Lockset 40H Escutcheon, Series 40H, Grd. 1, Entrance

  • Mfr # 45H7A16J626

  • Zoro # G0396606

product price:  $859.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Mortise
Lockset Function
Office
Lockset Grade
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
45H7A16J626
Zoro #
G0396606
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in
Strike Plate Width
1/8 in
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/4 in
Door Thickness - Maximum
5 in
Strike Plate Thickness
1 1/4 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Mortise
Lockset Function
Office
Lockset Grade
1
Style
40H Escutcheon
Lockset Finish
Satin Chrome
Keyway Type
None
Key Type
Not Keyed
Backset
2 3/4 in
Features
Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation
Strike Type
ANSI
Item
Door Lockset
For Use With
Hollow Metal and Wood Doors
Location Type
Commercial
Ligature Resistant
No
ADA Compliant
Yes
Lockset Fire Rating
3 hr
Includes
2 9/32 in W x 7 1/2 in H J Escutcheon, Single Key with Latch
Strike Dim.
4-7/8 in x 1-1/4 in x 3/32 in
Series
40H Series
Standards
ANSI A117.1, ANSI A156.13, BHMA, cULus Listed
Number of Keys
0
Mortise/Cylindrical
Mortise
Number of Pins
7
Handle Type
Curved/No Return
Fire Rated
3 hr.
Function
Entrance/Office
Grade
1
Finish
Satin Chrome
Case Material
Steel, Zinc
Pins
0
Visual Indicator Message
No Message
Cylinder Core Type
Interchangeable Core Cylinder
Knob/Handle Material
Brass, Bronze, Stainless Steel
Application
Commercial, Industrial
Locking/Unlocking Access - Outside
Keyway
ANSI Grade
1
Latch Bolt/Dead Bolt
Latch Bolt
Fire Rating
3 hr
Ligature-Resistant
Not Ligature-Resistant
Includes Hardware
Hardware Included
Lockset Function ANSI Code
F04
Performance Grade
1
Hand Orientation
Non-Handed
ANSI/BHMA Finish
Satin Chromium-Plated
Lockset Style
40H Escutcheon
Lockset Type
Mechanical

Description

Lever Lockset,Mechanical,Entrance,Grd. 1
