  13. Mortise Lockset 40H Escutcheon, Series 40H, Grd. 1, Passage
Best Mortise Lockset 40H Escutcheon, Series 40H, Grd. 1, Passage 45H0N15J626 - main

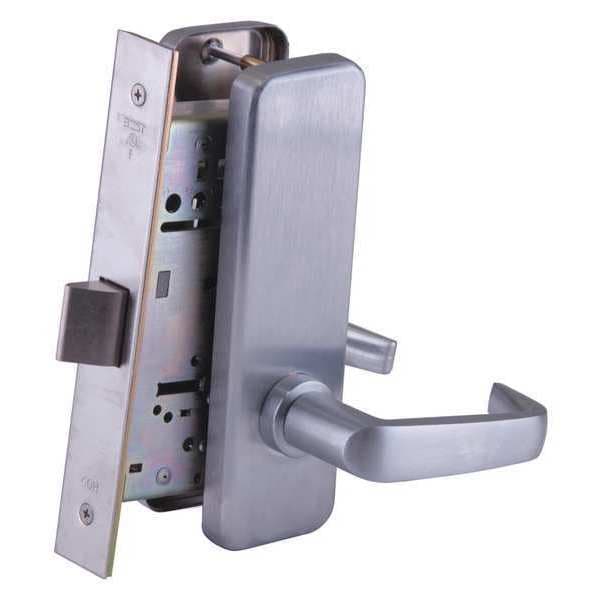

Mortise Lockset 40H Escutcheon, Series 40H, Grd. 1, Passage

  • Mfr # 45H0N15J626

  • Zoro # G0396728

product price: $815.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Hollow Metal and Wood Doors
Includes
Hardware
Key Type
Not Keyed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
45H0N15J626
Zoro #
G0396728
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in
Door Thickness - Maximum
5 in
Strike Plate Thickness
1 1/4 in
Strike Plate Height
4 7/8 in
Strike Plate Width
1/8 in
Door Thickness - Minimum
1 3/4 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Hollow Metal and Wood Doors
Includes
Hardware
Key Type
Not Keyed
Keyway Type
None
Location Type
Commercial
Lockset Function
Passage
Lockset Grade
1
Lockset Handle Type
Lever
Mortise/Cylindrical
Mortise
Series
40H Series
Style
40H Escutcheon
Finish
Satin Chrome
ADA Compliant
Yes
Ligature Resistant
No
Lockset Finish
Satin Chrome
Lockset Fire Rating
3 hr
Number of Keys
0
Mortise / Cylindrical
Mortise
Strike Dim.
4-7/8 in x 1-1/4 in x 3/32 in
Item
Door Lockset
Strike Type
ANSI
Features
Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation
Standards
ANSI A117.1, ANSI A156.13, BHMA, cULus Listed
Handle Type
Contour/Angle Return
Pins
0
Grade
1
Function
Passage
Case Material
Steel, Zinc
Fire Rated
3 hr.
Visual Indicator Message
No Message
Cylinder Core Type
Interchangeable Core Cylinder
Application
Commercial, Industrial
Lockset Type
Mechanical
Lockset Function ANSI Code
F01
Ligature-Resistant
Not Ligature-Resistant
Includes Hardware
Hardware Included
Performance Grade
1
Fire Rating
3 hr
Locking/Unlocking Access - Outside
Not Lockable
Knob/Handle Material
Brass, Bronze, Stainless Steel
Locking/Unlocking Access - Inside
Not Lockable
Lockset Style
40H Escutcheon
ANSI/BHMA Finish
Satin Chromium-Plated
Latch Bolt/Dead Bolt
Latch Bolt
Hand Orientation
Non-Handed
ANSI Grade
1

Description

Lever Lockset,Mechanical,Passage,Grd. 1
