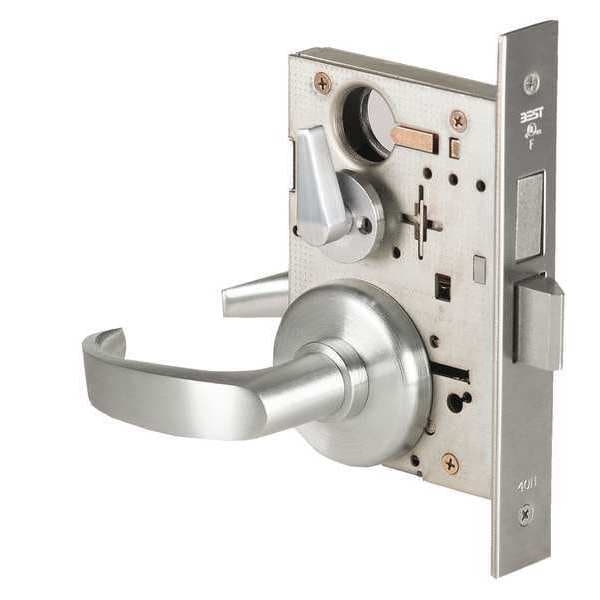

Best Mortise Lockset 40H Rose, Series 40H Series, Grd. 1, Privacy 45H0L14R626 - main

Mortise Lockset 40H Rose, Series 40H Series, Grd. 1, Privacy

  • Mfr # 45H0L14R626

  • Zoro # G0396816

product price:  $789.99
/ea
Free Shipping & Returns

Key Features

Lockset Function
Privacy
Location Type
Commercial
Electrical/Mechanical
Mechanical
Grade
1
Finish
Satin Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
45H0L14R626
Zoro #
G0396816
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in
Door Thickness - Maximum
5 in
Strike Plate Width
1/8 in
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/4 in
Strike Plate Thickness
1 1/4 in

Details

Item
Door Lockset
Lockset Function
Privacy
Location Type
Commercial
Electrical/Mechanical
Mechanical
Grade
1
Finish
Satin Chrome
Series
40H Series
Backset
2 3/4 in
Strike Dim.
4-7/8 in x 1-1/4 in x 3/32 in
Includes
2 3/4 in Dia R Rose Contoured with Round Edge
Key Type
Not Keyed
Lockset Finish
Satin Chrome
Style
40H Rose
ADA Compliant
Yes
Mortise / Cylindrical
Mortise
Features
Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation
Number of Keys
0
Lockset Fire Rating
3 hr
For Use With
Hollow Metal and Wood Doors
Ligature Resistant
No
Lockset Grade
1
Lockset Handle Type
Lever
Standards
ANSI A117.1, ANSI A156.13, BHMA, cULus Listed
Strike Type
ANSI
Mortise/Cylindrical
Mortise
Function
Privacy
Pins
0
Keyway Type
None
Fire Rated
3 hr.
Case Material
Steel, Zinc
Handle Type
Curved Return
Visual Indicator Message
No Message
Ligature-Resistant
Not Ligature-Resistant
Hand Orientation
Non-Handed
Lockset Type
Mechanical
Lockset Style
40H Rose
Performance Grade
1
Fire Rating
3 hr
Cylinder Core Type
Interchangeable Core Cylinder
Lockset Function ANSI Code
F19
Knob/Handle Material
Brass, Bronze, Stainless Steel
ANSI Grade
1
Application
Commercial, Industrial
Includes Hardware
Hardware Included
Latch Bolt/Dead Bolt
Latch Bolt
ANSI/BHMA Finish
Satin Chromium-Plated
Locking/Unlocking Access - Inside
Thumb Turn
Locking/Unlocking Access - Outside
Coin Turn

Description

Lever Lockset,Mechanical,Privacy,Grd. 1
