  13. Mortise Lockset, 45H, Left Hand, Mech.

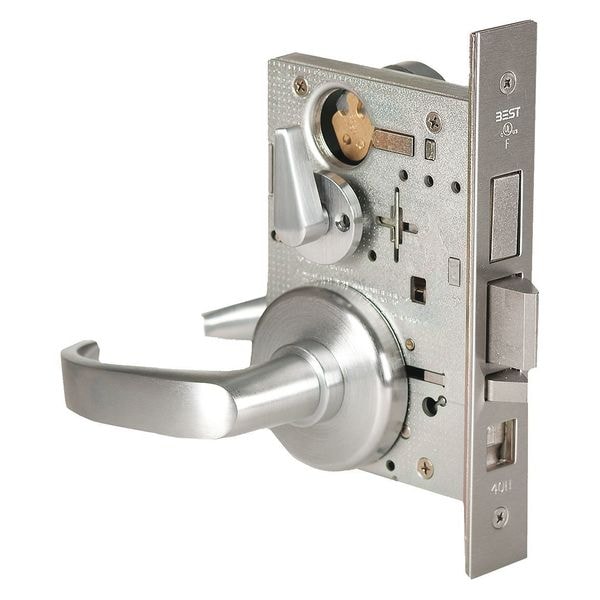

Best Mortise Lockset, 45H, Left Hand, Mech. 45H7AB14H626LH - main

Mortise Lockset, 45H, Left Hand, Mech.

  • Mfr # 45H7AB14H626LH

  • Zoro # G7893475

product price: $919.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Mortise
Lockset Function
Office
Lockset Grade
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
45H7AB14H626LH
Zoro #
G7893475
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in
Case Size
5-7/8" x 7/8" x 4-1/16"
Strike Plate Width
1/8 in
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/4 in
Door Thickness - Maximum
5 in
Strike Plate Thickness
1 1/4 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Mortise
Lockset Function
Office
Lockset Grade
1
Style
Left Hand
Lockset Finish
Satin Chrome
Keyway Type
Best F
Key Type
Not Keyed
Number of Keys
0
Function
Office
Ligature Resistant
No
Series
45H
Pins
7
Standards
ANSI A117.1, ANSI A156.13, BHMA, cULus Listed
ADA Compliant
Yes
For Use With
Metal and Wood Doors
Features
Configurable Option Field, Durable, Heavy Duty Protection and Performance
Lockset Fire Rating
3 hr
Fire Rated
3 hr.
Lockset Performance Strength
Heavy Duty
Location Type
Commercial, Educational, Healthcare, Industrial, Institutional
Includes
Mounting Hardware
Grade
1
Strike Dim.
4-7/8 in x 1-1/4 in x 3/32 in
Backset
2 3/4 in
Strike Type
ANSI
Fire Rating - Door Hardware
3 hr
Case Material
Steel
Number of Pins
7
Item
Door Lockset
Handle Material
Brass
Handle Type
Lever #14 Rose H
Finish
Satin Chrome
Keying
Keyed Different
Visual Indicator Message
No Message
Mortise/Cylindrical
Mortise
Cylinder Core Type
Interchangeable Core Cylinder
ANSI Grade
1
Lockset Style
Left Hand
Application
Commercial/Industrial
Knob/Handle Material
Brass, Bronze, Stainless Steel
ANSI/BHMA Finish
Satin Chromium-Plated
Fire Rating
3 hr
Performance Grade
1
Includes Hardware
Hardware Included
Lockset Type
Mechanical

Description

Mortise Lockset, Style Left Hand, Function Office, Function Code F-20, Location Type Institutional, Commercial, Educational, HealthCare, Industrial, Mechanical, Trim Style Escutcheon, Backset 2-3/4 In., Strike Type ANSI, Strike Dim. 4-7/8 In. x 1-1/4 In. x 3/32 In., 3 hr. Fire Rated, Series 45H, Case Material Steel, Satin Chrome Finish, Case Size 5-7/8 In. x 7/8 In. x 4-1/16 In., Required Door Thickness 1-3/4 In., For Use With A label Doors, Grade 1, Pins 7, Keying Keyed Different
