  13. Mortise Lockset, Knob, 40H Ser., 40H Escutcheon, Store, Mech.

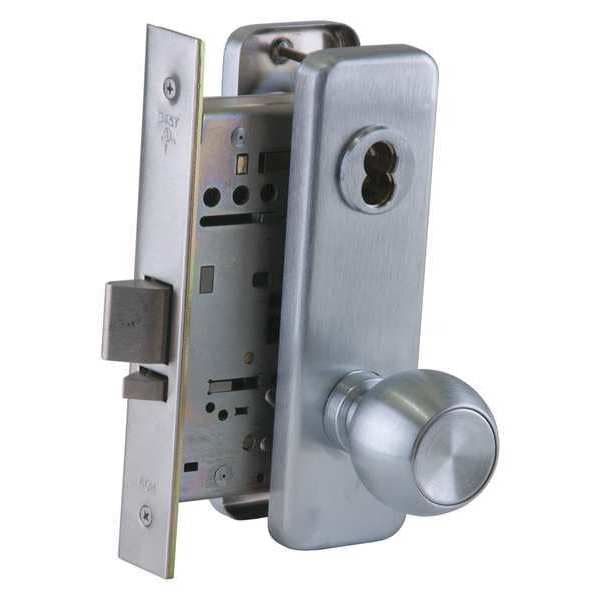

Best Mortise Lockset, Knob, 40H Ser., 40H Escutcheon, Store, Mech. 45H7W4J626 - main

Mortise Lockset, Knob, 40H Ser., 40H Escutcheon, Store, Mech.

  • Mfr # 45H7W4J626

  • Zoro # G0395958

product price: $920.99
/ea
Free Shipping & Returns

Key Features

Lockset Finish
Satin Chrome
Lockset Grade
1
Lockset Handle Type
Knob
Mortise / Cylindrical
Mortise
Lockset Function
Storeroom
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
45H7W4J626
Zoro #
G0395958
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in
Strike Plate Height
4 7/8 in
Strike Plate Thickness
1 1/4 in
Door Thickness - Maximum
5 in
Strike Plate Width
1/8 in
Door Thickness - Minimum
1 3/4 in

Details

Lockset Finish
Satin Chrome
Lockset Grade
1
Lockset Handle Type
Knob
Mortise / Cylindrical
Mortise
Lockset Function
Storeroom
Keyway Type
None
Key Type
Not Keyed
Series
40H Series
Electrical/Mechanical
Mechanical
Backset
2 3/4 in
Standards
ANSI A117.1, ANSI A156.13, BHMA, cULus Listed
Includes
Hardware
Ligature Resistant
No
Location Type
Commercial
ADA Compliant
Yes
Pins
0
Item
Door Lockset
Strike Type
ANSI
Strike Dim.
4-7/8 in x 1-1/4 in x 3/32 in
Number of Keys
0
For Use With
Hollow Metal and Wood Doors
Lockset Fire Rating
3 hr
Style
40H Escutcheon
Mortise/Cylindrical
Mortise
Features
Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation
Case Material
Steel, Zinc
Number of Pins
7
Cylinder Core Type
Interchangeable Core Cylinder
Performance Grade
1
Latch Bolt/Dead Bolt
Latch Bolt
Lockset Function ANSI Code
F30
Ligature-Resistant
Not Ligature-Resistant
Knob/Handle Material
Brass, Bronze, Stainless Steel
Locking/Unlocking Access - Outside
Keyway
Application
Commercial, Industrial
Hand Orientation
Non-Handed
Locking/Unlocking Access - Inside
Keyway
Includes Hardware
Hardware Included
ANSI Grade
1
Fire Rating
3 hr
Lockset Type
Mechanical
Lockset Style
40H Escutcheon
ANSI/BHMA Finish
Satin Chromium-Plated

Description

Knob Lockset,Mechanical,Mortise,Grd. 1
