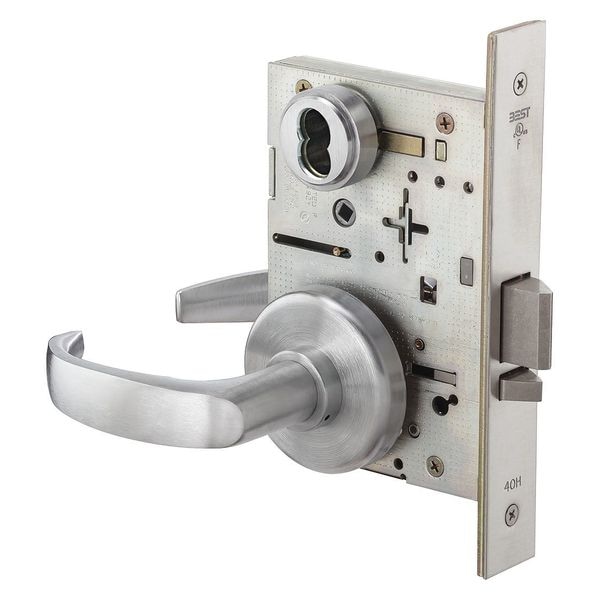

Mortise Lockset, Lever, 40H Ser., 40H Rose, Class, Mech.

Mfr # 45H7R14H630
Zoro # G0396186

$817.99

Free Shipping & Returns

Key Features

Electrical/Mechanical Mechanical
Lockset Handle Type Lever
Mortise / Cylindrical Mortise
Lockset Function Classroom
Lockset Grade 1

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Product Information

Brand Best
MFR # 45H7R14H630
Zoro # G0396186
Country of Origin United States
Category Keyed Entry Door Handles

Dimensions

Required Door Thickness	1-3/4 in
Strike Plate Thickness	1 1/4 in
Strike Plate Height	4 7/8 in
Door Thickness - Minimum	1 3/4 in
Door Thickness - Maximum	5 in
Strike Plate Width	1/8 in

Details

Electrical/Mechanical	Mechanical
Lockset Handle Type	Lever
Mortise / Cylindrical	Mortise
Lockset Function	Classroom
Lockset Grade	1
Style	40H Rose
Lockset Finish	Satin Chrome
Keyway Type	None
Key Type	Not Keyed
ADA Compliant	Yes
Includes	2 3/4 in Dia H Rose Flat with Round Edge
Series	40H Series
Mortise/Cylindrical	Mortise
Ligature Resistant	No
Item	Door Lockset
Number of Keys	0
Lockset Fire Rating	3 hr
Location Type	Commercial
Features	Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation
For Use With	Hollow Metal and Wood Doors
Backset	2 3/4 in
Strike Type	ANSI
Standards	ANSI A117.1, ANSI A156.13, BHMA, cULus Listed
Strike Dim.	4-7/8 in x 1-1/4 in x 3/32 in
Pins	0
Finish	Satin Chrome
Handle Type	Curved Return
Fire Rated	3 hr.
Case Material	Stainless Steel, Zinc
Grade	1
Number of Pins	7
Function	Classroom
Visual Indicator Message	No Message
Cylinder Core Type	Interchangeable Core Cylinder
Fire Rating	3 hr
Ligature-Resistant	Not Ligature-Resistant
Hand Orientation	Non-Handed
Performance Grade	1
Latch Bolt/Dead Bolt	Latch Bolt
ANSI/BHMA Finish	Satin Stainless Steel
Locking/Unlocking Access - Outside	Keyway
ANSI Grade	1
Includes Hardware	Hardware Included
Knob/Handle Material	Brass, Bronze, Stainless Steel
Lockset Style	40H Rose
Application	Commercial, Industrial
Lockset Type	Mechanical
Lockset Function ANSI Code	F05
