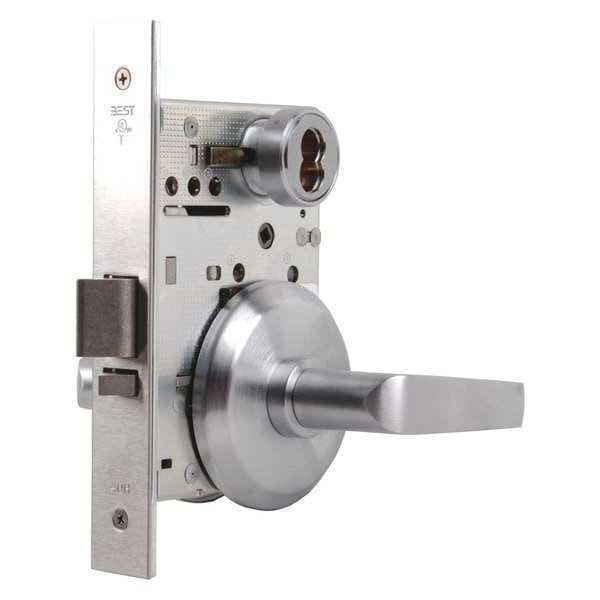

Best Mortise Lockset, Lever, 40H Series, 40H Rose, Mech. 45H7UNR15S626 - main

Mortise Lockset, Lever, 40H Series, 40H Rose, Mech.

  • Mfr # 45H7UNR15S626

  • Zoro # G0396000

product price:  $847.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Mortise
Lockset Function
Classroom
Lockset Grade
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
45H7UNR15S626
Zoro #
G0396000
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in
Strike Plate Lip Length
1 1/4 in
Strike Plate Height
4 7/8 in
Strike Plate Width
1/8 in
Strike Plate Thickness
1 1/4 in
Door Thickness - Maximum
5 in
Door Thickness - Minimum
1 3/4 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Mortise
Lockset Function
Classroom
Lockset Grade
1
Style
40H Rose
Lockset Finish
Satin Chrome
Keyway Type
None
Key Type
Not Keyed
Features
Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation
Lockset Fire Rating
3 hr
Item
Door Lockset
Number of Keys
0
Strike Type
Curved Lip
Ligature Resistant
No
ADA Compliant
Yes
Location Type
Commercial
Series
40H Series
Backset
2 3/4 in
For Use With
Hollow Metal and Wood Doors
Includes
3 1/2 in Dia S Rose Flat with Beveled Edge
Mortise/Cylindrical
Mortise
Standards
ANSI A117.1, ANSI A156.13, BHMA, cULus Listed
Strike Dim.
4-7/8 in x 1-1/4 in x 3/32 in
Finish
Satin Chrome
Fire Rated
3 hr.
Pins
0
Number of Pins
7
Handle Type
Contour/Angle Return
Function
Universal
Grade
1
Case Material
Steel, Zinc
Visual Indicator Message
No Message
Cylinder Core Type
Interchangeable Core Cylinder
Hand Orientation
Non-Handed
Latch Bolt/Dead Bolt
Latch Bolt
ANSI Grade
1
Fire Rating
3 hr
Includes Hardware
Hardware Included
Lockset Style
40H Rose
Lockset Type
Mechanical
Application
Commercial, Industrial
Knob/Handle Material
Brass, Bronze, Stainless Steel
ANSI/BHMA Finish
Satin Chromium-Plated
Performance Grade
1
Ligature-Resistant
Not Ligature-Resistant

Description

Lever Lockset,Mechanical,Grd. 1,40H Rose
