  13. Mortise Lockset, Lever, 40H Series, 40H Rose, Mech.

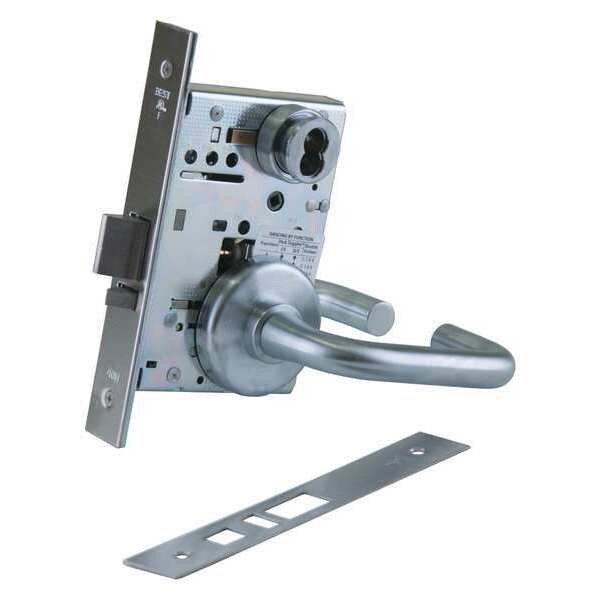

Best Mortise Lockset, Lever, 40H Series, 40H Rose, Mech. 45H7UNR3H626 - main

Mortise Lockset, Lever, 40H Series, 40H Rose, Mech.

  • Mfr # 45H7UNR3H626

  • Zoro # G0395991

product price: $847.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Mortise
Lockset Function
Classroom
Lockset Grade
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
45H7UNR3H626
Zoro #
G0395991
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/4 in
Strike Plate Thickness
1 1/4 in
Door Thickness - Maximum
5 in
Strike Plate Width
1/8 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Mortise
Lockset Function
Classroom
Lockset Grade
1
Style
40H Rose
Lockset Finish
Satin Chrome
Keyway Type
None
Key Type
Not Keyed
Ligature Resistant
No
Location Type
Commercial
Lockset Fire Rating
3 hr
Mortise/Cylindrical
Mortise
Number of Keys
0
Features
Solid One-Piece Stainless Steel Anti-Friction Latch Provides 50% More Surface Contact with Strike for Superior Strength and Security. Reversible Latch Rotates 180 Degrees for Easy Handing Change Without Opening Case. Precision-Engineered Curve Provides Enhanced Cycle Life with Reduced Wear to The Strike. Armored Front Completely Surrounds Latch and Deadbolt Providing Increased Lateral Strength. Staked Assembly Design Allows The Armored Front to Self-Align with The Door Bevel During Installation
For Use With
Hollow Metal and Wood Doors
Item
Door Lockset
Standards
ANSI A117.1, ANSI A156.13, BHMA, cULus Listed
Backset
2 3/4 in
Strike Dim.
4-7/8 in x 1-1/4 in x 3/32 in
Strike Type
ANSI
ADA Compliant
Yes
Series
40H Series
Includes
Hardware
Pins
0
Finish
Satin Chrome
Fire Rated
3 hr.
Case Material
Steel, Zinc
Grade
1
Function
Universal
Handle Type
Solid Tube/Return
Number of Pins
7
Visual Indicator Message
No Message
Cylinder Core Type
Interchangeable Core Cylinder
Latch Bolt/Dead Bolt
Latch Bolt
ANSI/BHMA Finish
Satin Chromium-Plated
Includes Hardware
Hardware Included
ANSI Grade
1
Application
Commercial, Industrial
Fire Rating
3 hr
Lockset Type
Mechanical
Knob/Handle Material
Brass, Bronze, Stainless Steel
Performance Grade
1
Ligature-Resistant
Not Ligature-Resistant
Hand Orientation
Non-Handed
Lockset Style
40H Rose

Description

Lever Lockset,Mechanical,Grd. 1,40H Rose
