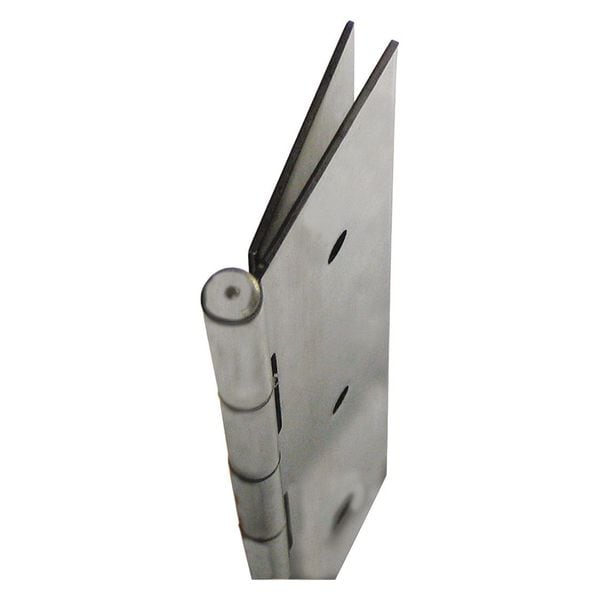

Piano Hinge, Stainless Steel, Full Mortise Mounting, 2 3/16 in Leaf W x 83 1/8 in Leaf H, Satin
Mfr # 651UL732D
Zoro # G8579776
product price:Â $418.99
/ea
Free Shipping & Returns
Key Features
Material
Stainless Steel
Mounting
Full Mortise
Load Capacity
600 lb
Range of Motion
180 Degrees
Ligature Resistant
No
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
651UL732D
Zoro #
G8579776
UPC #
033923060325
Country of Origin
Canada
Dimensions
Door Leaf Width
2 3/16 in
Door Leaf Height
83 1/8 in
Door Leaf Thickness
0.075 in
Frame Leaf Width
2 3/16 in
Frame Leaf Height
83 1/8 in
Frame Leaf Thickness
0.075 in
Overall Width
4 3/8 in
Length
7 ft
Pin Dia.
1/4 in
Overall Knuckle Height
2 in
Required Door Thickness
1-3/4 in
Width
2-3/16"
Hinge Length
7 ft
Pin Diameter
1/4 in
Door Thickness - Maximum
1 3/4 in
Description
Piano Hinge, Ligature Resistant No, Stainless Steel Material, 180 Degrees Range of Motion, Satin Stainless Steel Finish, With Holes, 600 lb Load Capacity, Non Handed Orientation, 2 in Overall Knuckle Height, 83 1/8 in Door Leaf Height, 83 1/8 in Frame Leaf Height, 2 3/16 in Door Leaf Width, 2 3/16 in Frame Leaf Width, 0.075 in Door Leaf Thickness, 0.075 in Frame Leaf Thickness, 1-3/4 in Required Door Thickness, Length 7 ft, Included Hardware, 3 in Hole Spacing, 21 Holes per Leaf
