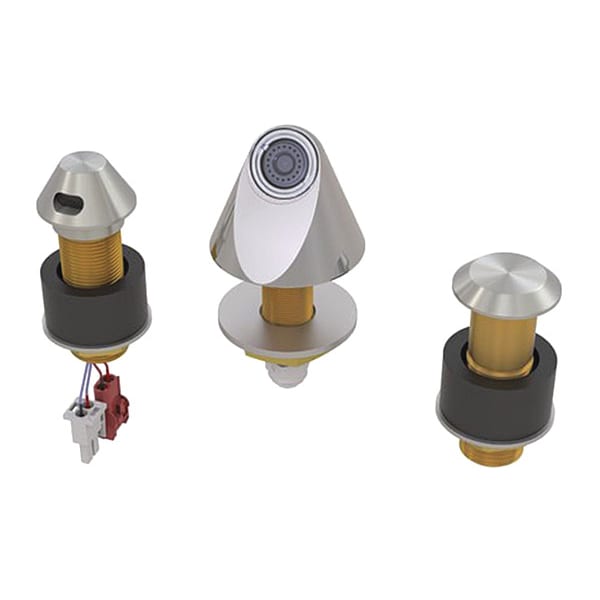

Sensor 8" Mount, 3 Hole Ligature Resistant Bathroom Faucet, Chrome plated

  • Mfr # WH3376-WSF-SO
  • Zoro # G5089767
product price:
$
791.99
/ea
Free Shipping & Returns

Key Features

Material
Brass
Height
3"
Application
Medical
Finish
Chrome
Faucet Spout Shape
Cone
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
WH3376-WSF-SO
Zoro #
G5089767
UPC #
883232486961
Country of Origin
Mexico

Dimensions

Height
3"
Spout Length
2 in
Manufacturers Warranty Length
1 yr
Max. Installation Surface Thickness
1 1/4 in
Water Inlet Connection Size
1/2 in
Spout Height
2 in
Overall Width
2 3/8 in
Inlet Connection Size
1/2 in
For Mounting Hole Diameter - Minimum
1 5/16 in
Spout Height - Maximum
2 in
For Surface Thickness - Maximum
1 1/4 in
For Mounting Hole Diameter - Maximum
1 1/2 in
Spout Outlet Height
2 in
Fits Chest Size
Designed and developed to retrofit existing lavatories or it can be specified for new design Faucet assembly requires (3) 1 5/16 in to 1 1/2 in diameter holes on 6 in or 8 in centerset. Faucet body is chrome plated brass, includes a multi-stream, non-aerated spray nozzle insert and provides vandal and Ligature Resistance. Valve is an electronic valve with sensor operation. Valve includes 9V DC Sensor that will keep the solenoid open, allowing water to flow until the object is removed from sensor range. If an object is positioned in a manner that it is under constant detection the sensor will turn off the solenoid after 30-90 seconds. A 9V DC, 6 AAA Battery Box provided. Assembly includes a 0.35 gpm flow control, 9V DC sensor and faucet connections

Details

Material
Brass
Application
Medical
Finish
Chrome
Item
Bathroom Sensor Faucet
Faucet Spout Shape
Cone
Faucet Operation
Sensor
Residential / Commercial
Commercial
Connection
1/2" NPS
Faucet Finish
Chrome
Mounting Type - Faucet
Deck
Body Material
Brass
Standards
UPC
Includes
120V AC Transformer, Electronic Sensor
Temp. Control
No
Green Environmental Attribute
Faucet Flow Rate 1.5 gpm Or Less
ADA Compliance
ADA Compliant
Faucet Handle Type
Metering
Voltage
9V DC
Drain Type
None
Number of Holes
3
Faucet Type
Bathroom Sink Faucet
Mounting Hole Center to Center
8"
Commercial / Residential
Commercial
Replacement Cartridge
None
Power Source
Plug-In
Flow Outlet Type - Faucet
Spray
Vandal Resistant Features
Vandal Resistant Spray Nozzle
CEC Compliant
CEC Compliant
Ligature Resistant
Yes
Flow Outlet Type (Faucet)
Spray
Number of Handles
0
Battery Charger CEC Compliant
CEC Compliant
ADA Compliant
Yes
Flow Rate
0.35 gpm
Sensor Range
2 in to 10 in
Mounting Type
Centerset
Handle Material
Stainless Steel
Flow Outlet Type
Ligature Resistant
Features
Designed and developed to retrofit existing lavatories or it can be specified for new design Faucet assembly requires (3) 1 5/16 in to 1 1/2 in diameter holes on 6 in or 8 in centerset. Faucet body is chrome plated brass, includes a multi-stream, non-aerated spray nozzle insert and provides vandal and Ligature Resistance. Valve is an electronic valve with sensor operation. Valve includes 9V DC Sensor that will keep the solenoid open, allowing water to flow until the object is removed from sensor range. If an object is positioned in a manner that it is under constant detection the sensor will turn off the solenoid after 30-90 seconds. A 9V DC, 6 AAA Battery Box provided. Assembly includes a 0.35 gpm flow control, 9V DC sensor and faucet connections
Water Inlet Connection Type
Male NPT
Faucet Handle Material
Stainless Steel
Series
WH3376
Faucet Body Material
Brass
Temperature Control
Non-Adjustable Temperature
Max. Mounting Hole Center Distance
8 in
Valve Type - Faucets
Solenoid Valve
Faucet Activation
Motion Sensor
Spout Reach
2 3/8 in
Sensor Type
Fixed
Includes Handle
Handle Not Included
Mounting Hole Center-to-Center Distance - Minimum
8 in
Compatible Cartridge Manufacturer Part Number
None
Number of Mounting Holes
3
Vandal Resistance
Vandal-Resistant Outlet
Warranty
1 yr
Operation Method
Motion Sensor
CEC Compliance
CEC Compliant
Spout Shape
Cone
Spout Style
Fixed
Sensor Range - Maximum
10 ft
Flow Rate - Maximum
0.35 gpm
Product Type
Sensor Faucet
Water Supply Type
Single Tempered Line
Temperature - Maximum
105 Degrees F
Ligature Resistance
Ligature-Resistant
Includes Transformer
Transformer Included
Inlet Connection Gender
Male
For Location
Bathroom
Flow Type
Spray
Pressure - Maximum
100 psi
Inlet Connection Type
NPT
Time Out
20 sec
Temperature Control Method
Mixing Valve Not Included
Mounting Hole Center-to-Center Distance - Maximum
8 in
Power Source - TS Only
Plug-In
Power Source - old
Plug-In

Description

Bathroom Faucet, Faucet Operation Sensor, Number of Handles 1, Faucet Handle Type Push, Connection 1/2 In. NPS, 0.50 gpm Flow Rate, Number of Holes 3, Mounting Hole Center to Center 6 In. to 8 In., Body Material Brass, Faucet Spout Shape Straight, ADA Compliant Yes, Drain Type None, Mounting Type - Faucet Surface, Power Source Electronic, Plug in Tranformer, Voltage 9VDC, Spout Length 2 In., Valve Type Metering, Faucet Finish Chrome Plated, Height 3 In., Flow Outlet Type - Faucet Spray
