- MFR #
- WH3377-PPZ
- Zoro #
- G5089703
- UPC #
- 883232487494
- Country of Origin
- Mexico
- Faucet Operation
- Sensor
- Mounting Hole Center to Center
- 4"
- Number of Holes
- 3
- Mounting Type
- Centerset
- ADA Compliant
- Yes
- Finish
- Chrome
- Handle Type
- Push Button
- Flow Rate
- 0.35 gpm
- Faucet Spout Shape
- Cone
- Handle Material
- Stainless Steel
- Number of Handles
- 0
- Body Material
- Brass
- Voltage
- 9V DC
- Flow Outlet Type
- Vandal Resistant
- Item
- Bathroom Sensor Faucet
- Drain Type
- None
- Ligature Resistant
- Yes
- Includes
- 120V AC Transformer, Escutcheon, Hot and Cold Piezo Push Button, Push Button Sleeve
- Faucet Handle Type
- Metering
- Replacement Cartridge
- None
- Residential / Commercial
- Commercial
- Standards
- UPC
- Faucet Finish
- Chrome
- ADA Compliance
- Not ADA Compliant
- Battery Charger CEC Compliant
- CEC Compliant
- Connection
- 1/2" NPS
- Commercial / Residential
- Commercial
- Flow Outlet Type (Faucet)
- Spray
- Vandal Resistant Features
- Vandal Resistant Flow Nozzle
- Temp. Control
- No
- Faucet Type
- Bathroom Sink Faucet
- CEC Compliant
- CEC Compliant
- Mounting Type - Faucet
- Deck
- Power Source
- Plug-In
- Green Environmental Attribute
- Faucet Flow Rate 1.5 gpm Or Less
- Flow Outlet Type - Faucet
- Spray
- Features

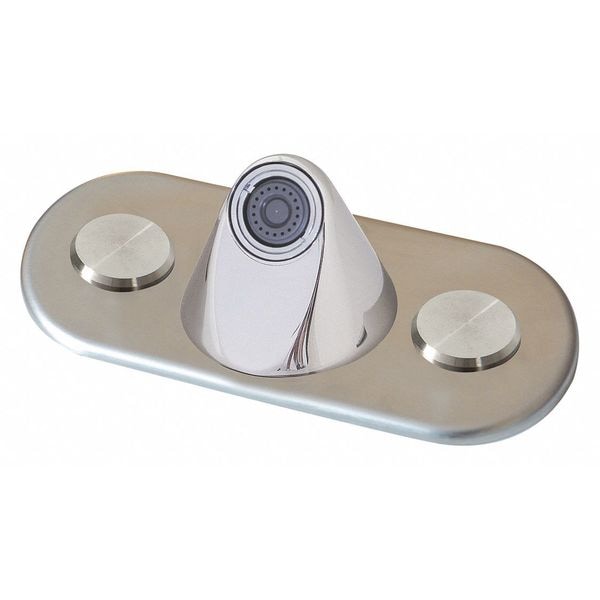

Designed and developed to retrofit existing lavatories or it can be specified for new design Faucet assembly requires (3) 1 5/16 in to 1 1/2 in diameter holes on 4 in centerset. Conical faucet is 303 stainless steel and provides vandal and suicide resistance. Valve is an electronic valve with Piezo pushbutton(s) which require less than 5 pounds of force to activate valve. Metering valve factory set for 8 second run time and has a timing range is 0-100 seconds. Valve includes a 0.35 gpm flow control and can be remotely located up to 10 feet from the operating pushbutton. A 120V AC/9V DC plug-in transformer is provided.
- Material
- 303 Stainless Steel
- Temperature Control
- Non-Adjustable Temperature
- Series
- WH3377
- Faucet Handle Material
- Stainless Steel
- Faucet Activation
- Manual
- Valve Type - Faucets
- Solenoid Valve
- Faucet Body Material
- Brass
- Water Inlet Connection Type
- Male NPT
- Max. Mounting Hole Center Distance
- 4 in
- Spout Reach
- 2 1/4 in
- Application
- Medical
- CEC Compliance
- CEC Compliant
- Pressure - Maximum
- 100 psi
- Includes Handle
- Handle Not Included
- Flow Type
- Spray
- For Location
- Bathroom
- Temperature Control Method
- Mixing Valve Not Included
- Compatible Cartridge Manufacturer Part Number
- None
- Temperature - Maximum
- 105 Degrees F
- Spout Style
- Fixed
- Time Out
- 8 sec
- Inlet Connection Type
- NPT
- Flow Rate - Maximum
- 0.35 gpm
- Mounting Hole Center-to-Center Distance - Minimum
- 4 in
- Ligature Resistance
- Ligature-Resistant
- Spout Shape
- Cone
- Warranty
- 1 yr
- Legend Style
- No Index
- Operation Method
- Manual
- Inlet Connection Gender
- Male
- Mounting Hole Center-to-Center Distance - Maximum
- 4 in
- Number of Mounting Holes
- 2
- Includes Transformer
- Transformer Included
- Vandal Resistance
- Vandal-Resistant Outlet
- Product Type
- Manual Faucet
- Water Supply Type
- Hot and Cold Lines
- Power Source - TS Only
- Plug-In
- Power Source - old
- Plug-In
