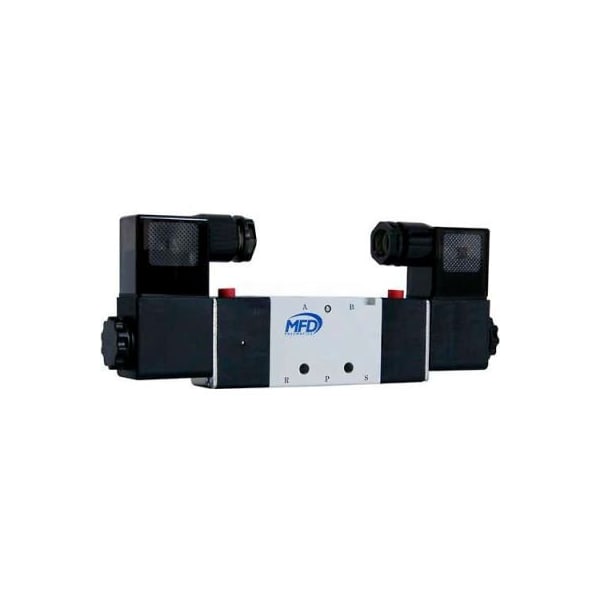

Bimba-Mead Pilot Solenoid Valve, 5 Port, 2 Pos, Double, 1/8" NPT, 120VAC, Cv=0.67

Bimba-mead pilot solenoid valve m4v120-06-120vac, 5 port, 2 pos, double, 1/8" npt, 120vac, cv=0.67 m4v120-06 piloted double solenoid valves are 4-way, 1/8 in npt port, spool style valves. They are stackable and provide a 2-position, normally closed operation. The m4v120-06 series valves can be used in individual valve applications or multiple valves can be assembled together on a manifold to share supply air which simplifies the piping. They are compatible with the m100m series manifolds. The din connector includes an led indicator. Valves equipped with a turning manual override.
