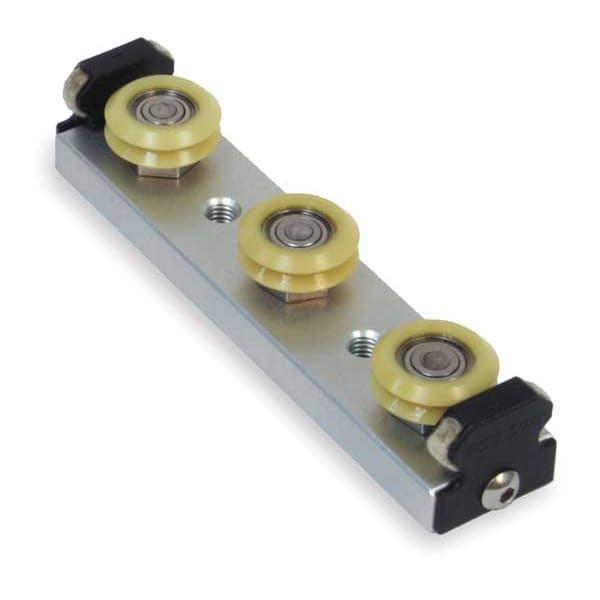

Carriage Assembly, 17.7 x 18 x 79.9 mm

BISHOP-WISECARVER| Zoro #: G1327672| Mfr #: UT0WPAP

$177.30 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1327672 Mfr #: UT0WPAP
Carriage Hole Size (In.): -Dimension S1: -
Dimension S3: -Dimension S2: -
Dimension L1: -Slide Width (In.): -
Dimension F: -Dimension N: -
Dimension F2: -Slide Height (In.): -
Includes: -Dimension L: -
Slide Length (In.): -Dimension B1: -
Dimension B2: -Dimension M1: -
Max. Pv: -Dimension X: -
Max. Speed (In/Sec): -Dimension J1: -
Dynamic Load Capacity (N): -Dimension P: -
Dimension O: -Dimension L2: -
Dimension L3: -Temp. Range (C): -55 to 100
Dynamic Load Capacity (Lb.): -Dimension F3: -
Dimension F1: -Dimension G1: -
Dimension G: -Static Load Capacity (N): -
Carriage Finish: Clear AnodizedType: SW Series
Dimension J: -Slide Hole Size (In.): -
Slide Length (mm): -Agency Compliance: -
Carriage Material: AluminumTemp. Range (F): -
Static Load Capacity (Lb.): -Item: Linear Guide Carriage Assembly
Dimension B: -Dimension G2: -
Seals: -Carriage Length: 79.9mm
Slide Height (mm): 22.0Carriage Width: 18mm
Roller Material: Polymer Overmoulded Stainless SteelCarriage Height: 17.7mm
Size: 0Max. Load Radial: 12 Lbf.
Max. Speed (m/Sec): 1.5Carriage Hole Size (mm): M4 x 0.7
Roller Type: VeeRoller Finish: -
Carriage Type: VeeSlide Hole Size (mm): 8.3x3
Max. Load Axial: 20 Lbf.Slide Width (mm): 20
Country of Origin (subject to change): United States

Product Description

Linear Guide Carriage Assembly, SW Series, Carriage Height 17.7 mm, Carriage Width 18 mm, Carriage Length 79.9 mm, Carriage Hole Size M4 x 0.7 mm, Slide Height 22.0 mm, Slide Width 20 mm, Slide Hole Size 8.3 x 3 mm, Max Load Axial 20 Lb, Max Load Radial 12 Lb, Max Speed 1.5 m/Sec, Temp Range -55 to 100 C, Vee Carriage Type, Aluminum Carriage Material, Clear Anodized Carriage Finish, Vee Roller Type, Polymer Overmoulded Stainless Steel Roller Material, For Use With PW Series Vee Channel
