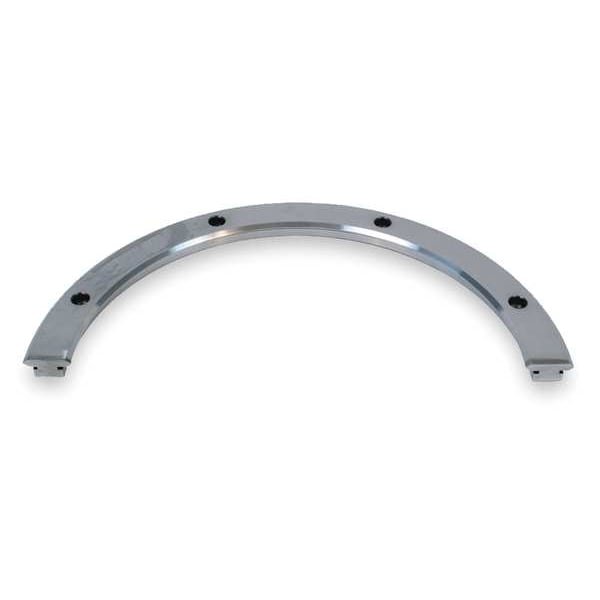

Slide Ring, 180 Degree, 280.74 mm OD
Mfr # R25255180
Zoro # G2835686
product price: $757.99
/ea
Free Shipping & Returns
Key Features
For Use With
2NDL2
Type
180 Degrees Half Ring
Rail Material
Steel
Rail Finish
Precision Ground
Screw Type
Socket Head Cap Screw
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
R25255180
Zoro #
G2835686
UPC #
-
Country of Origin
United Kingdom
Dimensions
Outside Dia. (mm)
280.74 mm
Rail Width (mm)
15.4 mm
Dimension G (mm)
15.4 mm
Dimension D (mm)
280.74 mm
Dimension K (mm)
5.75 mm
Dimension B (mm)
239.6 mm
Thread Size
M5
Dimension H (mm)
12.25 mm
Dimension C (mm)
270.4 mm
Dimension A (mm)
255 mm
Dimension J (mm)
4.5 mm
Dimension F (mm)
25.74 mm
Mounting Hole Size (mm)
5.5 mm
Inside Dia. (mm)
229.26 mm
Dimension E (mm)
229.26 mm
Dimension I (mm)
10 mm
Outside Diameter
280.74 mm
Mounting Screw Thread Size
M5
Mounting Hole Size
5.5 mm
Inside Diameter
229.26 mm
Rail Width
15.4 mm
Description
Slide Ring, Ring Type Half Ring, Inside Diameter 229.26 mm, Outside Diameter 280.74 mm, Rail Width 15.4 mm, Compatible Grainger Part Number 2NDL2, Finish Precision Ground, Material Steel, Mounting Hole Center to Center 255 mm, Mounting Screw Thread Size M5, Mounting Screw Type Socket Head Cap Screw, Number of Mounting Holes 8, Mounting Hole Size 5.5 mm, Maximum Temperature 60 Degrees C, Minimum Temperature -20 Degrees C
